2421810000 - RoHS-Compliant M8 Connector, IP67, 60V/4A, 3-Pole (Pack of 25)

2421810000 - RoHS-Compliant M8 Connector, IP67, 60V/4A, 3-Pole (Pack of 25)

SKU: 2421810000   Download PDF

Select a Variant:
  • 2421810000 - RoHS-Compliant M8 Connector, IP67, 60V/4A, 3-Pole (Pack of 25)
Qty:
Now $97.50   Web pricing policy
BEFORE   $0.00 Now $97.50 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

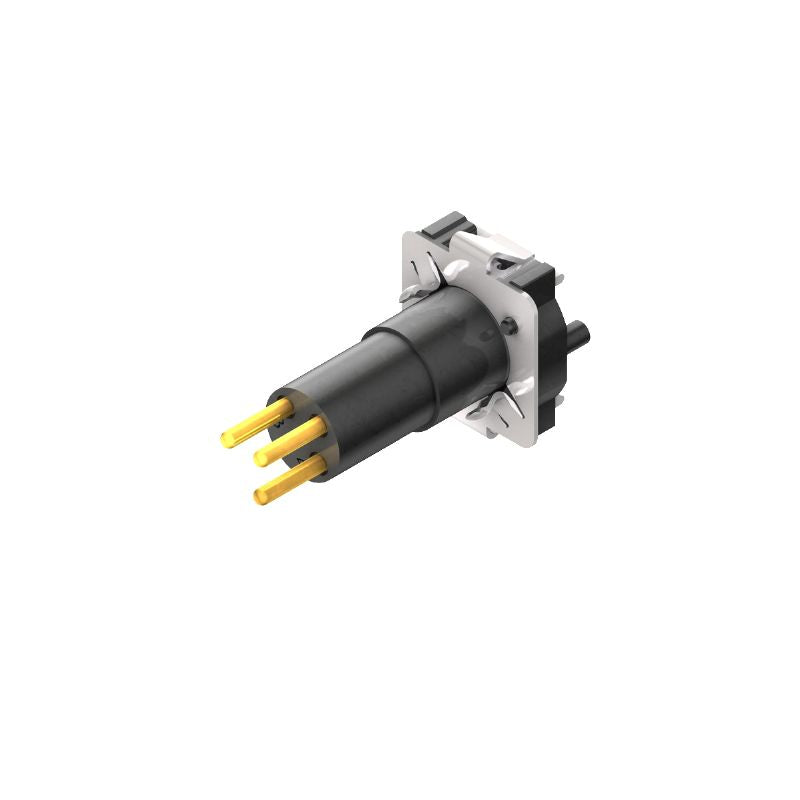

Introducing the M8 built-in connector, crafted with a mounting thread and three contact points This connector adheres to RoHS regulations, with a specific exemption noted as 6c Capable of handling up to 60 V and 4 A, it operates effectively in a temperature range from -25 to 95 °C With its robust construction, this connector is rated IP67, making it ideal for use in challenging environments.

Features and Benefits:

    •M8 connection thread.

    •Shield connection included.

    •Compliance with RoHS and REACH regulations.

    •Durable construction with LCP housing material.

    •Gold contact surface for improved connectivity.

    •Rated for up to 100 plugging cycles.

Specifications:

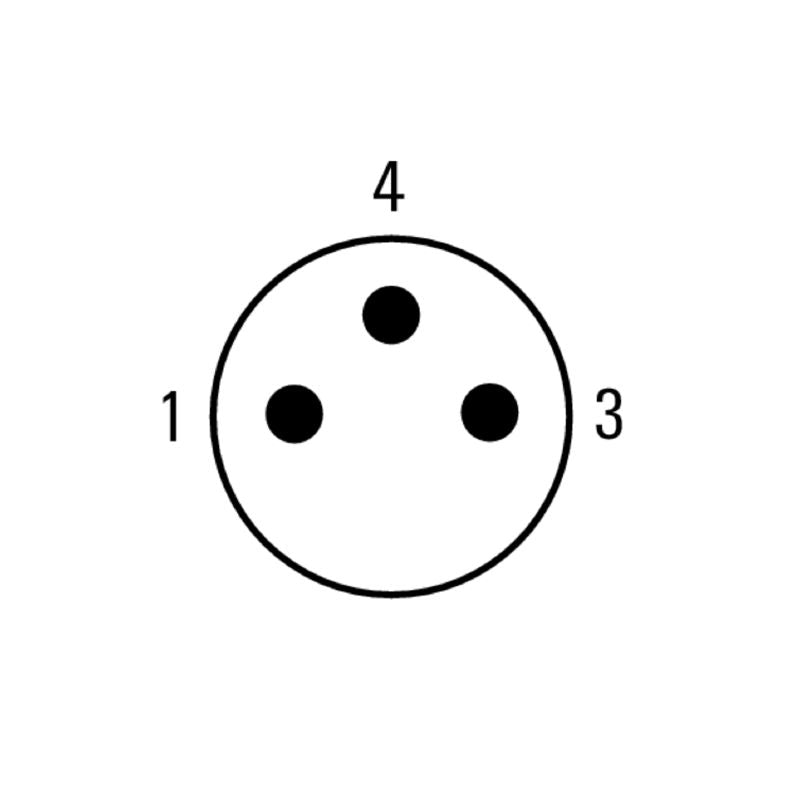

 Number of poles 3
 Nominal voltage 60 V
 Rated voltage 60 V (3-pole) / 30 V (4-, 5- and 8-pole)
 Nominal current 4 A
 Rated current 4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
 Temperature range -25…95 °C
 Protection degree IP67
 Contact surface Au (Gold)
 Housing main material LCP
 Tightening torque M8: 0.5 Nm
 Plugging cycles ≥ 100
 Contact material Cu-alloy
 Lock nut material Nickel-plated CuZn
 Material of the flange-mounted housing Nickel-plated CuZn
 UL 94 flammability rating V-0
