2423510000 - Durable M12 Connector with 5 Poles & IP67 Protection (Pack of 10)

2423510000 - Durable M12 Connector with 5 Poles & IP67 Protection (Pack of 10)

SKU: 2423510000   Download PDF

Select a Variant:
  • 2423510000 - Durable M12 Connector with 5 Poles & IP67 Protection (Pack of 10)
Qty:
Now $85.80   Web pricing policy
BEFORE   $0.00 Now $85.80 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

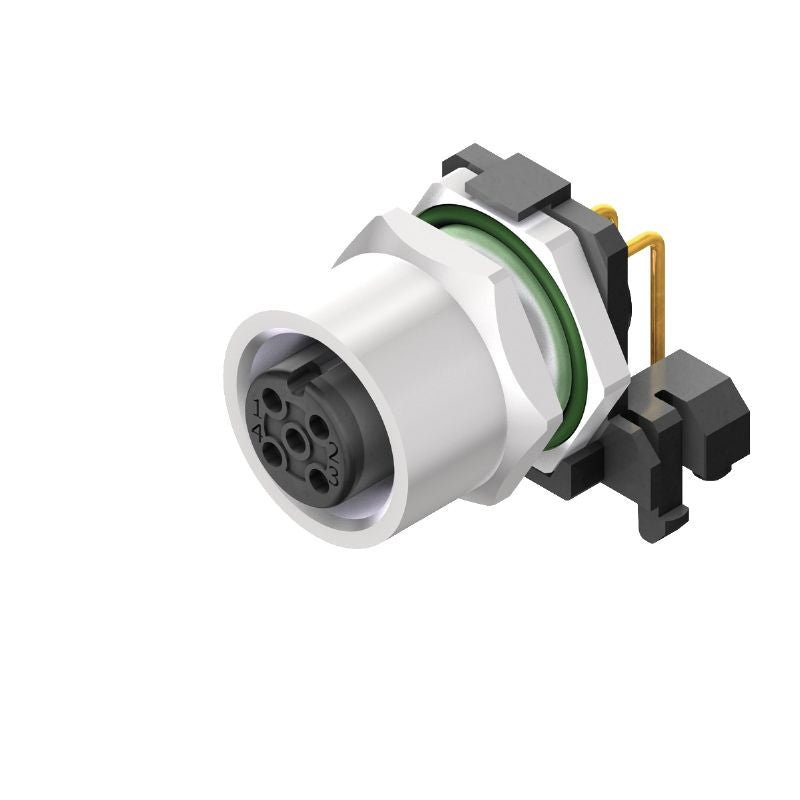

Introducing the M12 type connector, a versatile solution featuring built-in plugs and an M12 mounting thread This connector boasts 5 poles and adheres to RoHS standards, with a noted exemption Its housing, made from nickel-plated CuZn material, guarantees both strength and longevity Designed for easy rear panel mounting, this connector provides a secure connection and an impressive protection rating of IP67, making it suitable for rigorous applications.

Features and Benefits:

    •A-coded housing for secure connections.

    •Connection thread size of M12.

    •Rated for a nominal voltage of 60V and a rated voltage of 250V (4-pole) / 60V (5-pole).

    •Able to handle a nominal and rated current of 4A.

    •Temperature range from -30 to 80 °C.

    •Insulation resistance of 100 MΩ.

    •Suitable for ≥ 100 plugging cycles.

Specifications:

 Number of poles 5
 Shield connection Yes
 Tightening torque M12: 0.8 Nm
 Mounting torque max. 1.2 Nm
 Pollution severity 3 (2 within the sealed area)
 Contact material Cu-alloy
 Contact surface Au (Gold)
 Protection degree IP67
 Pin series quantity 1
 Mounting thread M 12
 Material of the flange-mounted housing Nickel-plated CuZn
