Description:

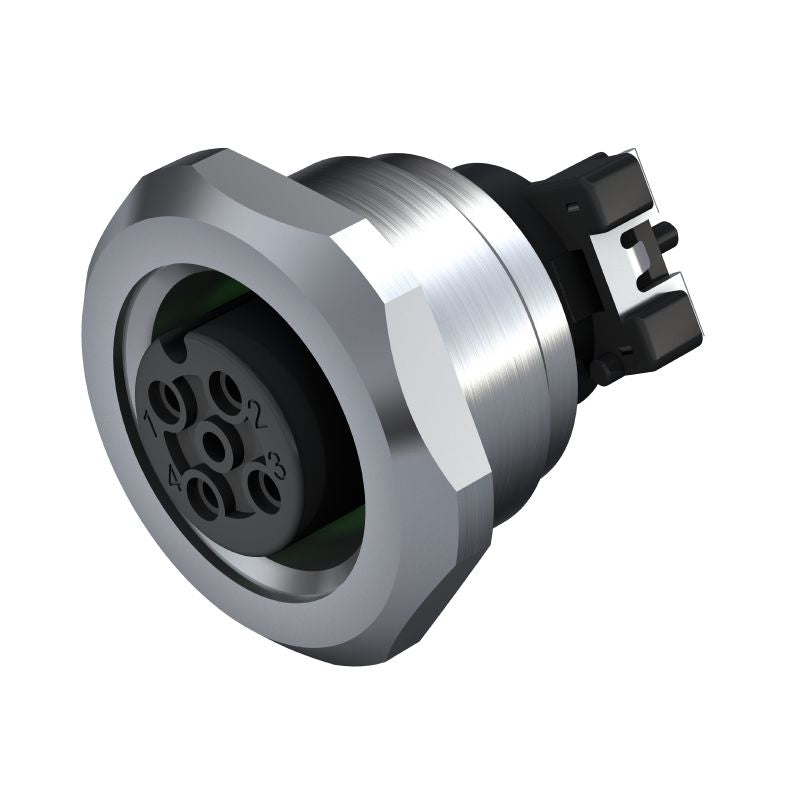

Enhance your projects with this durable PCB plug-in connector featuring a built-in plug and a secure mounting thread Designed with a reliable 5-pole configuration, this connector is versatile enough for a variety of applications Crafted to meet environmental standards, it is RoHS compliant, reflecting its commitment to eco-friendly manufacturing Weighing in at about 7568 grams, it boasts a robust nickel-plated CuZn housing for added strength.

With a voltage rating of up to 250V and capable of handling nominal currents of 4A, this connector simplifies PCB assembly with its SMD soldering compatibility.

Features and Benefits:

•IP67 protection degree.

•Gold contact surface for improved connectivity.

•Robust design for extended plugging cycles of ≥ 100.

•SMD solder connection for easy assembly.

•Compatible with M12 connection thread.

•Suitable for PCB plug-in connections in various electronic devices.

Specifications:

Number of poles	5
Nominal voltage	60 V
Rated voltage	250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
Nominal current	4 A
Protection degree	IP67
Temperature range	-30…80 °C
Insulation resistance	100 MΩ
Plugging cycles	≥ 100
Housing main material	CuZn, nickel-plated
Contact material	Cu-alloy
Contact surface	Au (Gold)

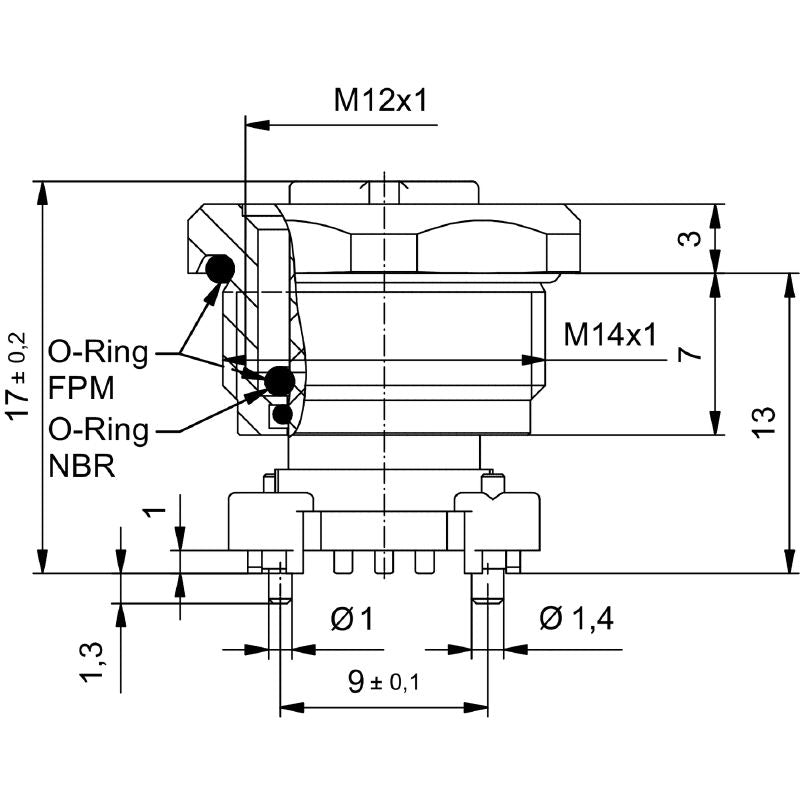

Tightening torque	M12: 0.8 Nm
Mounting torque max	1.2 Nm
Mounting thread	M14

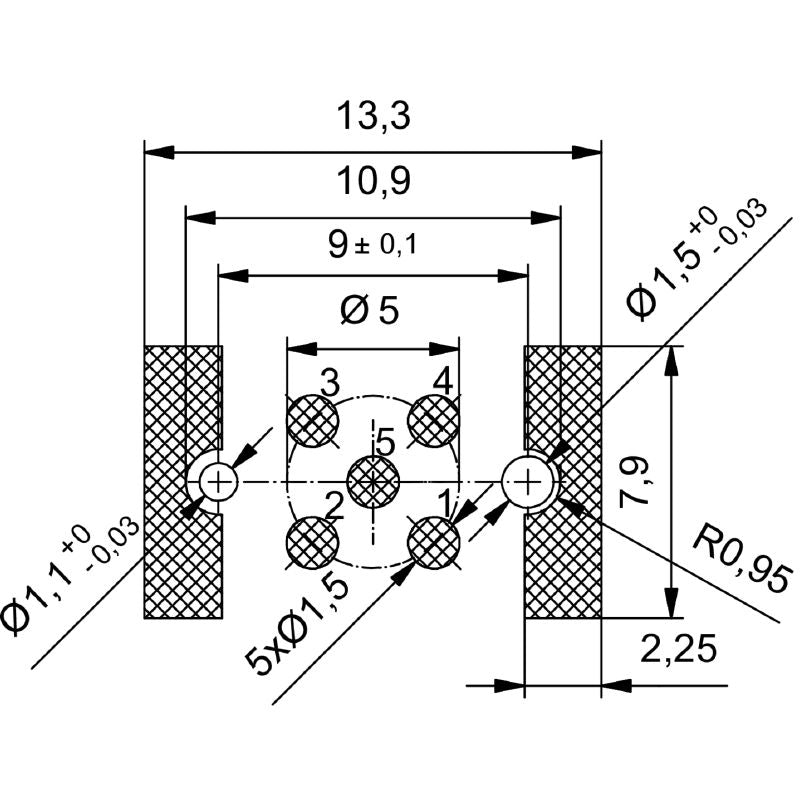

Mounting onto the PCB	SMD solder connection
