2423150000 - M12 Connector with 5 Poles, IP67 Protection and 250V Rating (Pack of 10)

Description:

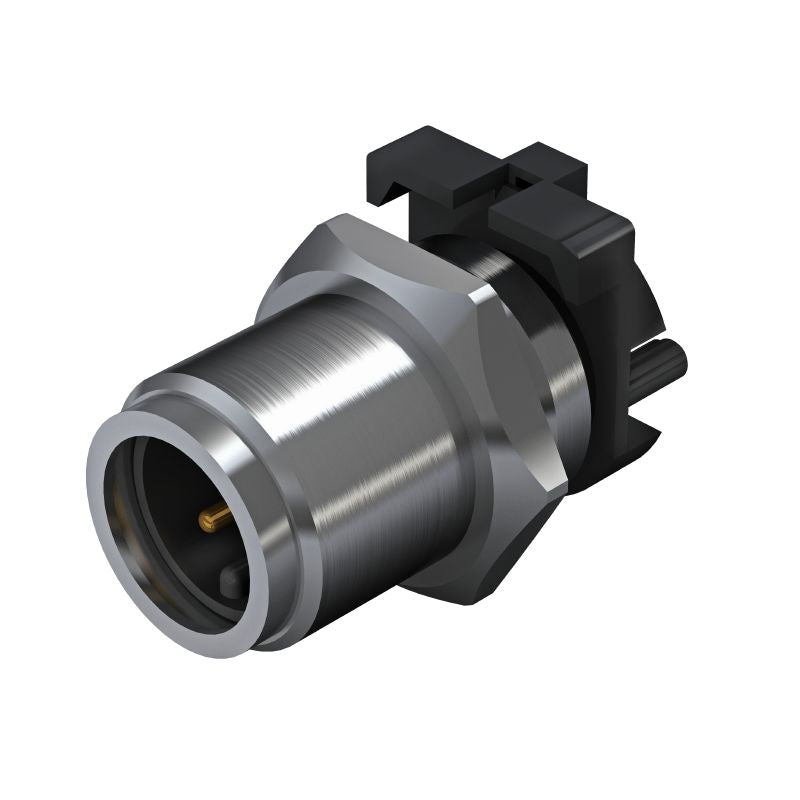

Introducing a robust connector tailored for M12 applications, featuring integrated plugs and a mounting thread of M12 with a configuration of 5 poles Although the cable length is not specified, this connector is RoHS compliant and adheres to the relevant exemption criteria In terms of performance, it operates at a nominal voltage of 60 V and supports a rated voltage of 250 V when configured with 4 poles, efficiently managing a nominal current of 4 A.

It is built to endure a wide temperature range from -30 to 80 °C and boasts a high protection rating of IP67, ensuring reliability and durability in various conditions.

Features and Benefits:

•A-coded coding configuration.

•Nickel-plated housing surface.

•Front mounting type with front installation.

•Includes a shield connection.

•Insulation resistance is rated at 100 MΩ.

•Supports at least 100 plugging cycles.

•Lock nut material is nickel-plated CuZn.

•Housing constructed from nickel-plated CuZn.

Specifications:
