2423940000 - IP67 M8 Connector, 4-Pole, LCP Housing, RoHS Compliant (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

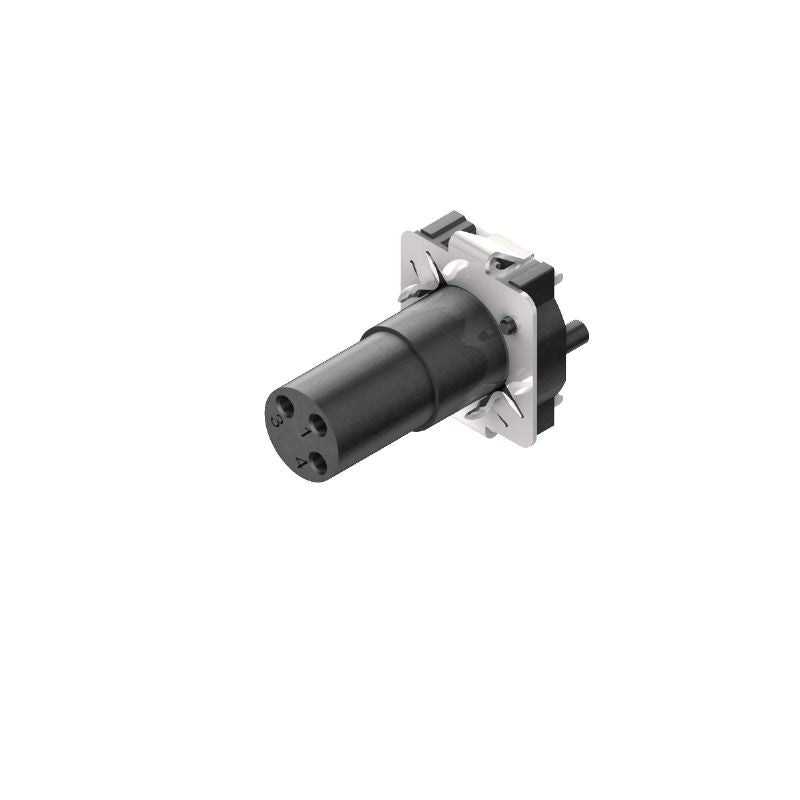

Introducing the SAID-M8B-4S-THR, a versatile connector equipped with four poles and integrated M8 connectors Crafted from durable LCP material, it boasts an IP67 protection rating, ensuring reliable performance across diverse applications This product is compliant with RoHS regulations and features a nickel-plated copper-zinc nut that guarantees a secure and stable connection With a nominal voltage of 30 V and a rated voltage capacity of up to 60 V for 3-pole configurations, it is designed to efficiently manage a nominal and rated current of 4 A, making it an excellent choice for your electrical systems.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Protection degree IP67 for enhanced durability.

•Rated for a temperature range of -25 to 95 °C.

•Suitable for plugging cycles of ≥ 100.

•Constructed with Au (Gold) contact surface for optimal conductivity.

Specifications:
