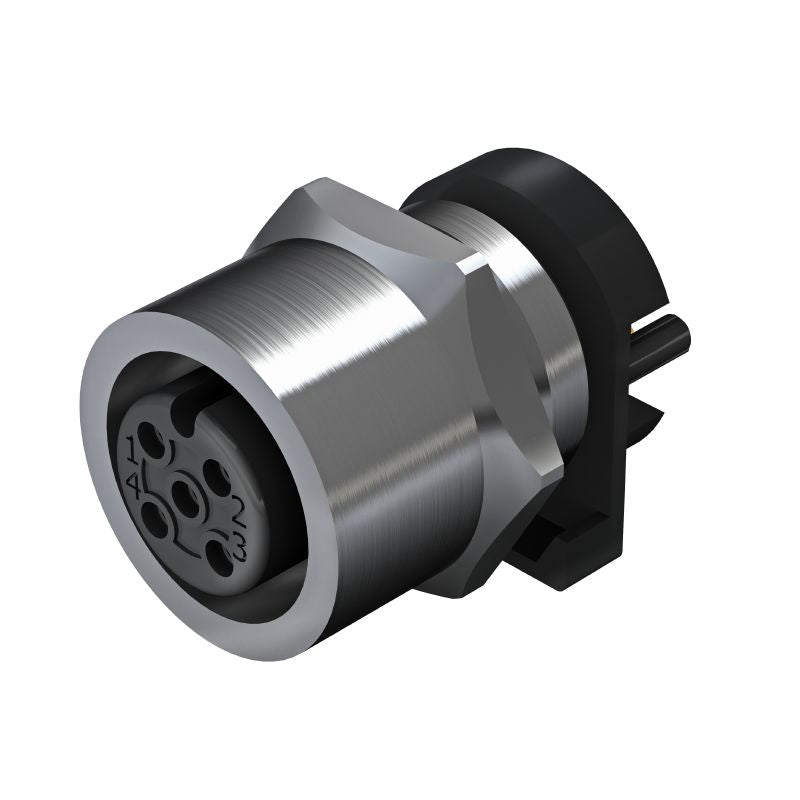

2422520000 - M12 5-Pole Socket Connector, IP67, 10mm Installation Height (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

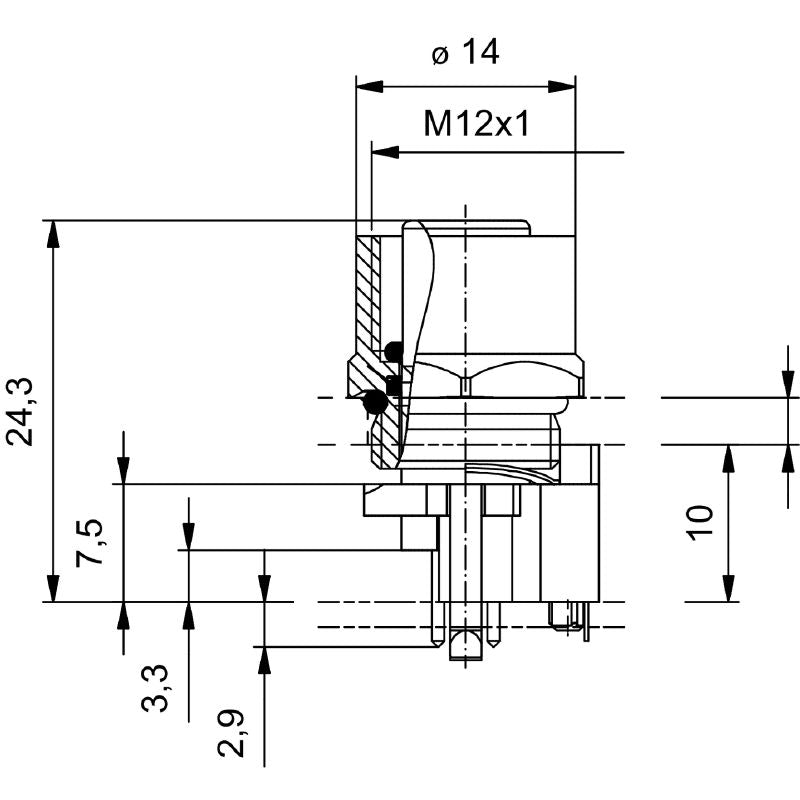

Discover the versatility of this M12 socket connector, which includes integrated plugs and an M12 mounting thread Weighing only 164 g, it features 5 poles and adheres to ROHS standards Additionally, it meets REACH SVHC criteria concerning Lead (7439-92-1) and possesses a SCIP number, ensuring compliance with safety regulations This connector is designed for easy installation with a height of 10 mm and operates at a nominal voltage of 60 V.

It offers a rated voltage of 250 V for the 4-pole configuration, while the 5-pole version supports 60 V With a nominal and rated current capacity of 4 A, it provides reliable performance The connector is protected against dust and water with an IP67 rating, suitable for various environments It can handle extreme temperatures ranging from -30°C to 80°C and boasts an impressive insulation resistance of 100 MΩ.

Both the contacts and housing are finished with durable nickel plating, complemented by gold contact material for enhanced conductivity and longevity.

Features and Benefits:

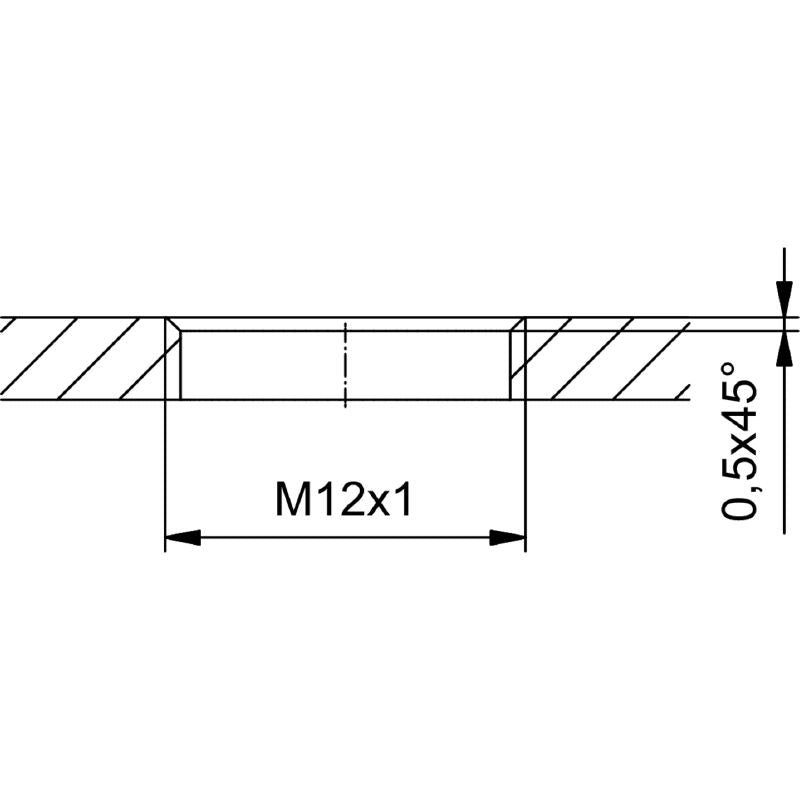

•M12 socket with a mounting thread of M12.

•Equipped with built-in plugs and designed for 5 poles.

•Rated current of 4 A and nominal voltage of 60 V.

•Temperature range of -30°C to 80°C.

•Protection degree of IP67.

•Extended plugging cycles of at least 100.

Specifications:
