2424300000 - 8mm M8 Plug Connector, 3 Poles, IP67 Rated (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

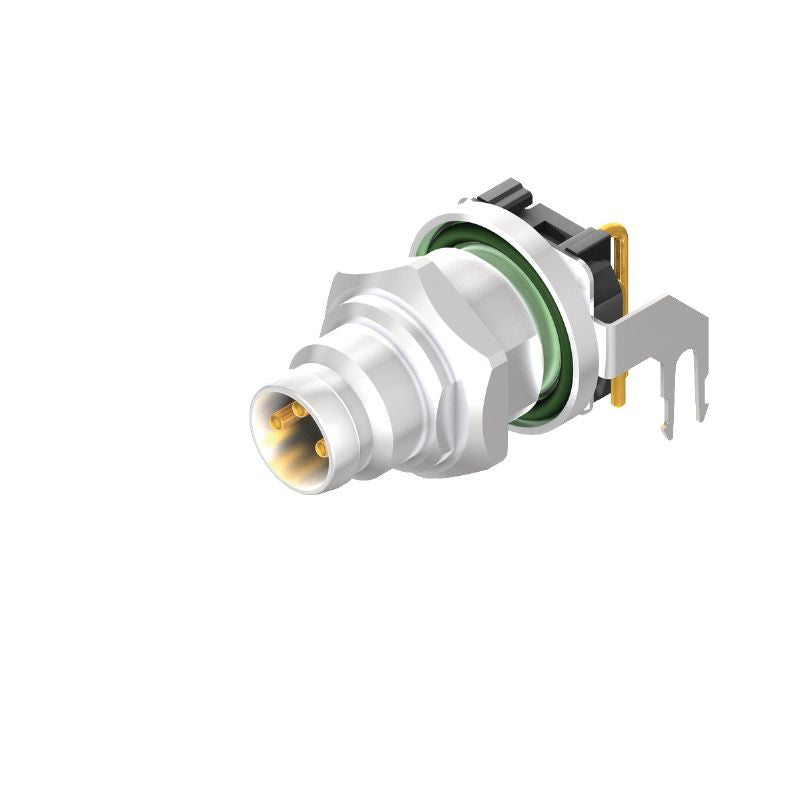

Introducing the M8 plug connector, expertly engineered for applications that require mounting threads This connector meets RoHS standards, showcasing its commitment to safety and environmental responsibility With a compact installation height of just 8 mm, it features three contacts with a rated voltage of 60 V in the 3-pole setup, and 30 V for the 4-pole configuration It operates effectively in a diverse temperature range of -30 to 80 °C and boasts an impressive IP67 protection rating, making it robust against harsh conditions.

Crafted from nickel-plated CuZn, this connector guarantees reliable electrical connections and is designed to endure at least 100 plugging cycles—ideal for both professional and industrial applications.

Features and Benefits:

•Built-in plugs facilitating easier installations.

•M8 connection thread ensuring secure fittings.

•Shield connection for enhanced protection against interference.

•Robust construction with nickel-plated CuZn.

•High insulation resistance at 100 MΩ.

Specifications:
