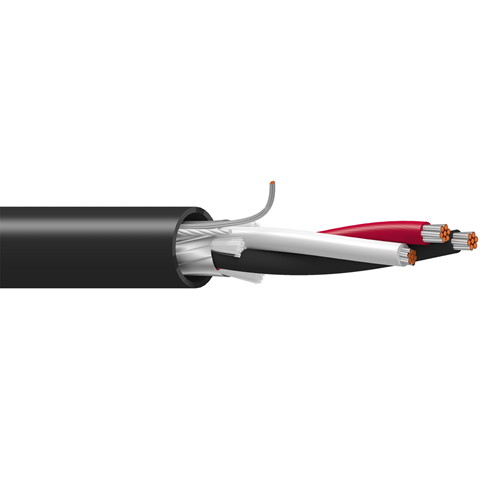

Belden 9363 22 AWG 1 Triad 7x30 Stranding 300V High Performance Instrumentation Cable

Description:

High Performance Instrumentation, 1 Triad 22 AWG (7x30) Tinned Copper, PVC Insulation E1 Color Code, Overall Beldfoil Shield, PVC Outer Jacket, PLTC.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.062 in (1.6 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.210 in (5.33 mm)
• Overall Cable Diameter (Nominal): 0.210 in (5.33 mm)

Standards:

• Voltage Rating: 300 V (PLTC, CMG)
• Operating Temperature: -30°C to +105°C

Applications:

• Instrumentation, Sensors, Valves, Positioners, RTD, 4-20mA, 0-10V

Specifications:

• Size (AWG): 22
• No. of Triad: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9363
