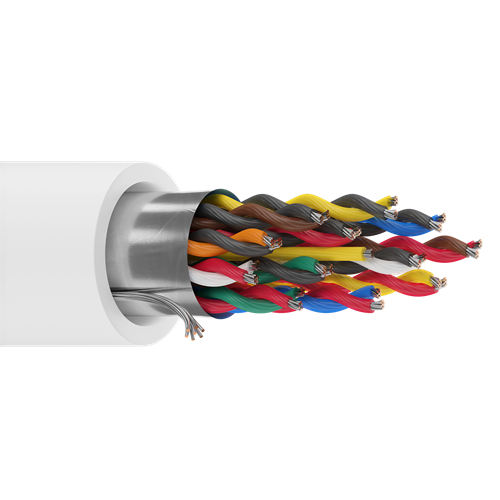

Belden 82512 24 AWG 12.5 Pair 7x32 Stranding Tinned Copper 300V Computer EIA RS-232 Cable

Description:

Computer EIA RS-232 Cable, 12.5-Pair, 24 AWG stranded (7x32) tinned copper conductors, FEP insulation, overall Beldfoil shield (100% coverage), 24 AWG stranded tinned copper drain wire, Flamarrest jacket, plenum rated.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.006 in (0.15 mm)
• Nom. Insulation Diameter: 0.036 in (0.91 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.278 in (7.06 mm)
• Overall Cable Diameter (Nominal): 0.278 in (7.06 mm)

Standards:

• Voltage Rating: 300 V (CMP)
• Operating Temperature: 0°C to +60°C

Applications:

• indoor plenum applications; RS-232 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Specifications:

• Size (AWG): 24
• No. of Pair: 12.5
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 82512
