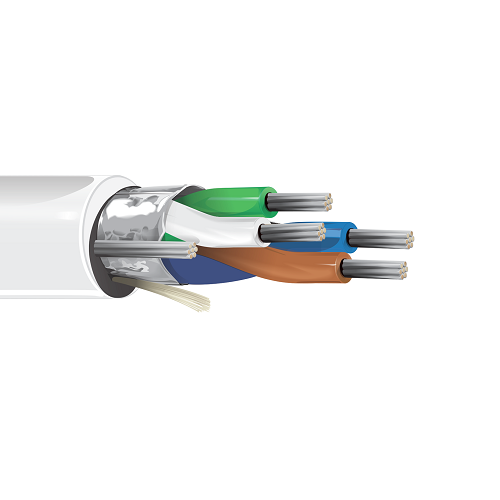

Belden 6541FD 22 AWG 2 Pair 7x30 Stranding Tinned Copper 300V OSDP Reader Cable

Description:-

RS485, OSDP Reader, 2 Pr #22 Str TC, FEP, Overall Shield, CMP.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Thickness: 0.023 in (0.58 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Diameter: 0.292 in (7.04mm)
• Outer Jacket1 Table Notes: Flamearrest Plenum Jacket

Standards:-

• UL Voltage Rating: 300 V
• Nom. Characteristic Impedance: 120 Ohm
• Operating Temperature Range: 0°C to +75°C

Applications:-

• RS-485 Serial Data, Dual OSDP Reader Access Control

Specifications:-

• Size (AWG): 22
• No. of Pairs: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 6541FD
