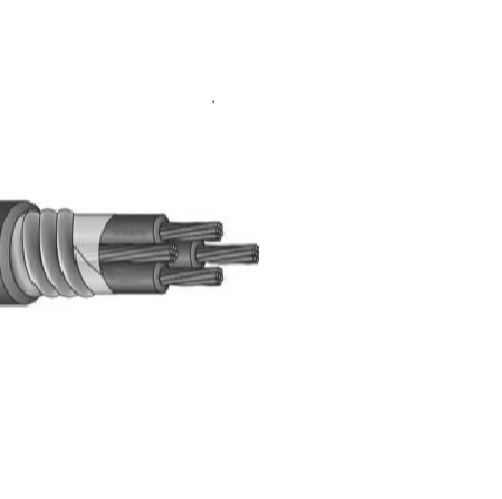

Service Wire Multi Conductor Zero Halogen Limited Smoke Cable 600 Volt

Description:
Limited smoke copper cable is a portable Service cable with a characteristic limited smoke MC XHHW-2 jacket. The cable has excellent flame-retardant property that primarily defines it. Its cross-linked polythene insulator has good heat resistant. This type of cable is therefore suitable for applications in hazardous locations and punishing environments because of this tough, robust and flame retardant insulation and jacket.

Application:
Limited smoke copper cable is suitable for use in hazardous locations because of its tough MC XHHW-2 jacket. It can serve well in both wet and dry locations because its tough jacket can resist moisture, water and UV rays. Applications involving direct burial can be circuited using this cable because of its wide temperature range that can withstand the varying temperatures below the ground.

Conductor:
• stranded copper conductor
• 3 or 4 phase conductors made from stranded copper.
• Single ground wire; bare copper
• Phase cabling with fillers

Insulation:
• Type XHHW-2 crosslinked polyethylene material.

Jacket:
• MC XHHW-2 jacket, also known as EnviroPlus

Features:
• 90°C temperature rating in both wet and dry locations
• Rated at -40°C for cold temperatures
• Excellent sunlight resistance
• Suitable for direct burial
• Two-firewall
• Zero halogen jacket

Standards:
• NEMA WC-70
• UL 1569
• ICEA S-95-658
• IEEE 383 Flame test, 70000 BTU
• IEEE 1202
• UL 15581
• UL 1685
• CSA FT-4
• Hazardous location standards; class 1 – div 2, and Div. 2 of Class 2
• RoHS compliant

size AWG or Kcmil strand (no.) ampacity* (30°c ambient)
90°c wet/dry
service wire
part number
Action
three conductor
8 7 55 AANH8/3 Request A Quote
6 7 75 AANH6/3 Request A Quote
4 7 95 AANH4/3 Request A Quote
3 7 115 AANH3/3 Request A Quote
2 7 130 AANH2/3 Request A Quote
1 19 145 AANH1/3 Request A Quote
1/0 19 170 AANH1/03 Request A Quote
2/0 19 195 AANH2/03 Request A Quote
3/0 19 225 AANH3/03 Request A Quote
4/0 19 260 AANH4/03 Request A Quote
250 37 290 AANH250/3 Request A Quote
350 37 350 AANH350/3 Request A Quote
500 37 430 AANH500/3 Request A Quote
600 61 475 AANH600/3 Request A Quote
750 61 535 AANH750/3 Request A Quote
four conductor
8 7 55 AANH8/4 Request A Quote
6 7 75 AANH6/4 Request A Quote
4 7 95 AANH4/4 Request A Quote
3 7 115 AANH3/4 Request A Quote
2 7 130 AANH2/4 Request A Quote
1 19 145 AANH1/4 Request A Quote
1/0 19 170 AANH1/04 Request A Quote
2/0 19 195 AANH2/04 Request A Quote
3/0 19 225 AANH3/04 Request A Quote
4/0 19 260 AANH4/04 Request A Quote
250 37 290 AANH250/4 Request A Quote
350 37 350 AANH350/4 Request A Quote
500 37 430 AANH500/4 Request A Quote
600 61 475 AANH600/4 Request A Quote
750 61 535 AANH750/4 Request A Quote
