Service Wire 2/0 AWG 3 Conductors Jacketed MC XHHW-2/EnviroPlus Tested Zero Halogen Limited Smoke 600V Copper Cable AANH2/03

Service Wire 2/0 AWG 3 Conductors Jacketed MC XHHW-2/EnviroPlus Tested Zero Halogen Limited Smoke 600V Copper Cable AANH2/03

Select gauge from drop-down menu for prices:

Service Wire 2/0 AWG 3 Conductors Jacketed MC XHHW-2/EnviroPlus Tested Zero Halogen Limited Smoke 600V Copper Cable AANH2/03
Service Wire 2/0 AWG 3 Conductors Jacketed MC XHHW-2/EnviroPlus Tested Zero Halogen Limited Smoke 600V Copper Cable AANH2/03

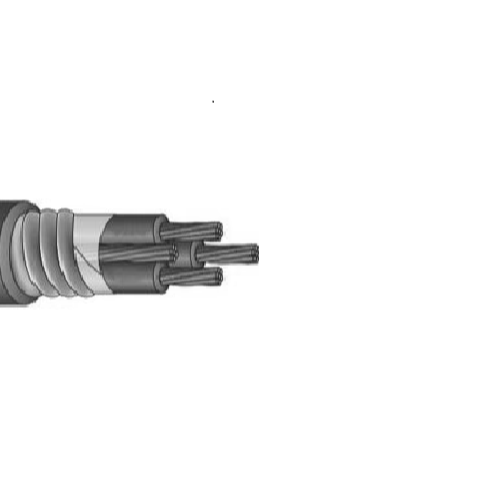

Description: 3 or 4 conductors, stranded, insulated with heat and moisture resistant crosslinked polyethylene (type XHHW-2), phase identified and cabled with suitable fillers (as necessary) and bare copper ground conductor. Cable core is covered with binder tape and aluminum or galvanized steel interlocked armor, with zero halogen, limited smoke, zero lead jacket.

Application: Suitable for use in hazardous locations: Class I - Div 2, Class II - Div 2

Standards:
• UL1569 ICEA S-95-658/NEMA WC-70
• Flame Rated: IEEE 383 (70,000 BTU)
• IEEE 1202/CSA FT-4
• UL 1685 and UL 1581
• Two-hour Firewall
• Temperature Rated at 90ºC Wet/Dry
• Cold Temperature Rated at -40ºC
• Sunlight Resistant
• Direct Burial1
• Color Code: Method 4 (other colors available upon request)
• Zero Halogen, Limited Smoke Jacket
• RoHS Compliant

technical specification:
size awg or kcmil 2/0
strand (no.) 19
insulation thickness (mils) 55
grounding conductor (awg) 6
diameter over armor (inch) 1.37
jacket thickness (mils) 50
approx. diameter overall (inch)
1.47
approx. net weight (lb/1000') alum.armor 1,843
approx. net weight (lb/1000') galv. armor 2,110
ampacity* (30°c ambient) 90°c wet/dry 195
service wire part number AANH2/03
