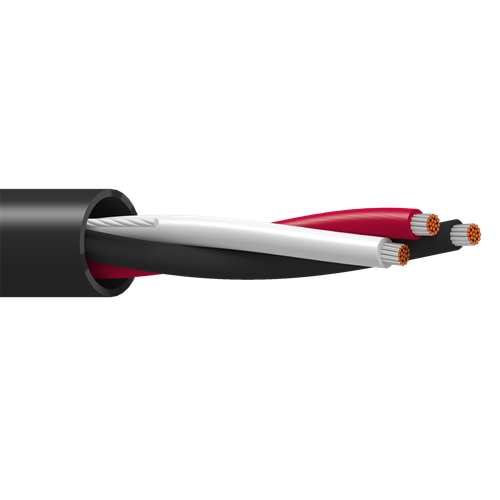

Belden 9492 20 AWG 1 Triad 19x32 Stranding 300V High Performance Instrumentation Cable

Description:

High Performance Instrumentation, 1 Triad 20 AWG (19x32) Tinned Copper, PVC Insulation E1 Color Code, PVC Outer Jacket, PLTC.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Insulation Diameter: 0.072 in (1.8 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.229 in (5.82 mm)
• Overall Cable Diameter (Nominal): 0.229 in (5.82 mm)

Standards:

• Voltage Rating: 300 V (PLTC, CMG)
• Operating Temperature: -30°C to +105°C

Applications:

• Instrumentation, Sensors, Valves, Positioners, RTD, 4-20mA, 0-10V

Specifications:

• Size (AWG): 20
• No. of Triad: 1
• Stranding: 19x32
• Conductor Material: TC - Tinned Copper
• Part Number: 9492
