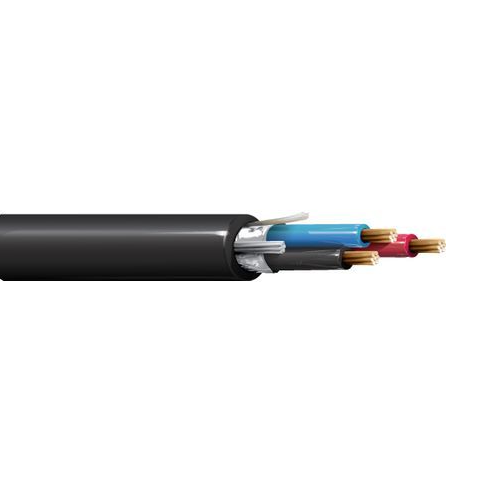

Belden 3081A 14 AWG 1 Triad 7x22 Stranding Bare Copper 600V Instrumentation Tray Cable

Description:

UL Instrumentation, 1 Triad 14 AWG (7x22) Bare Copper, PVC-NYL Insulation E1 Color Code, Overall Beldfoil Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF THHN OR THWN-2 90C Dry/Wet SUN RES DIR BUR.

Insulation:

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.0225 in (0.572 mm)
• Nom. Insulation Diameter: 0.116 in (2.95 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 16 AWG (7x24) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.047 in (1.2 mm)
• Nom. Diameter: 0.359 in
• Overall Cable Diameter (Nominal): 0.359 in

Standards:

• UL Temperature: 90°C Dry, 90°C Wet
• Voltage Rating: 600 V (TC-ER), 150 V (NPLF)
• Operating Temperature: -20°C to +90°C

Applications:

• Industrial Control, Raceways, Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...), low voltage digital control (24v, …), RTD, control circuits, distributed control system (DCS), programmable logic controller (PLC), Solenoids, Valves, actuators, positioners
