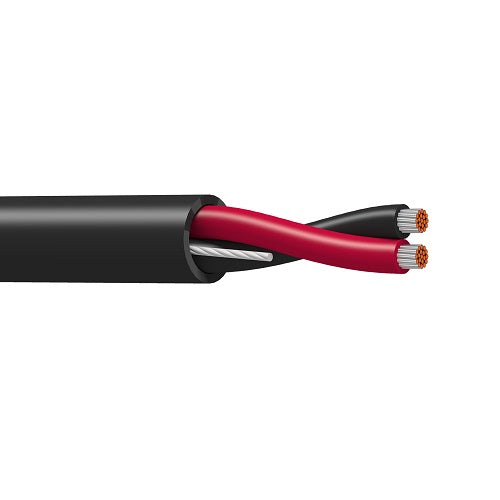

Belden 9407 22 AWG 1 Pair 7x30 Stranding Tinned Copper 300V High Performance Instrumentation Cable

Description:-

High Performance Instrumentation, 1 Pair 22 AWG (7x30) Tinned Copper, PVC Insulation E2 Color Code, PVC Outer Jacket, PLTC.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.062 in (1.6 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.198 in (5.03 mm)
• Overall Cable Diameter (Nominal): 0.198 in (5.03 mm)

Standards:-

• UL Voltage Rating: 300 V (PLTC, CMG)
• Nom. Characteristic Impedance: 90 Ohm
• Operating Temperature Range: -30°C to +105°C

Applications:-

• Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Specifications:-

• Size (AWG): 22
• No. of Pairs: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9407
