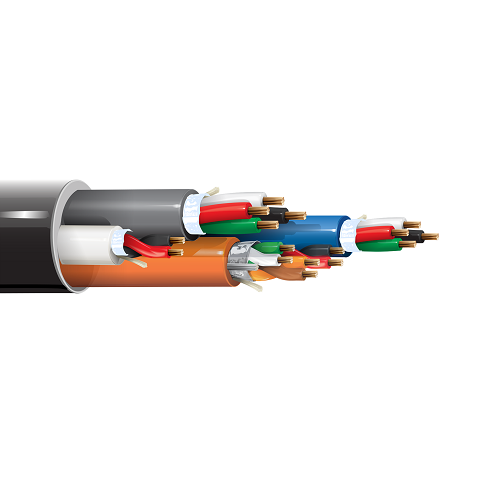

Belden 558AM1 22 AWG 7x30 Stranding 18 AWG 7x26 Stranding Bare Copper 300V Access Control Cable
Description:-
Access Control, 16c (#22-6C,18-4c, #22-6c), Only Card Reader Pairs, Shielded, Indoor/Outdoor CM.
Insulation:-
Element: Card Reader: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
Element: Door Contact: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
Element: REX/Spare: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
Element: Lock Power: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.012 in (0.30 mm)
Inner Shield:-
Element: Card Reader: Conductor(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper
Element: Door Contact: Conductor(s)
No Shield
Element: REX/Spare: Conductor(s)
No Shield
Element: Lock Power: Conductor(s)
No Shield
• Waterblocking: Waterblock Tape
Inner Jacket:-
Element: Card Reader: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.226 in (5.74 mm)
• Separator: Waterblocking Tape
Element: Door Contact: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.168 in (4.27 mm)
• Separator: Waterblocking Tape
Element: REX/Spare: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.187 in (4.75 mm)
• Separator: Waterblocking Tape
Element: Lock Power: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.233 in (5.92 mm)
• Separator: Waterblocking Tape
Outer Jacket:-
• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.565 in (14.4 mm)
• Overall Cable Diameter (Nominal): 0.565 in (14.4 mm)
Standards:-
• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C to +60°C
Applications:-
• Indoor/Outdoor: Access Control, Security System, Power Limited Controls
Specifications:-
Element: Card Reader: Conductor(s)
• Size (AWG): 22
• No. of Conductors: 6
• Stranding: 7x30
• Conductor Material: BC - Bare Copper
Element: Door Contact: Conductor(s)
• Size (AWG): 22
• No. of Conductors: 2
• Stranding: 7x30
• Conductor Material: BC - Bare Copper
Element: REX/Spare: Conductor(s)
• Size (AWG): 22
• No. of Conductors: 4
• Stranding: 7x30
• Conductor Material: BC - Bare Copper
Element: Lock Power: Conductor(s)
• Size (AWG): 18
• No. of Conductors: 4
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 558AM1
