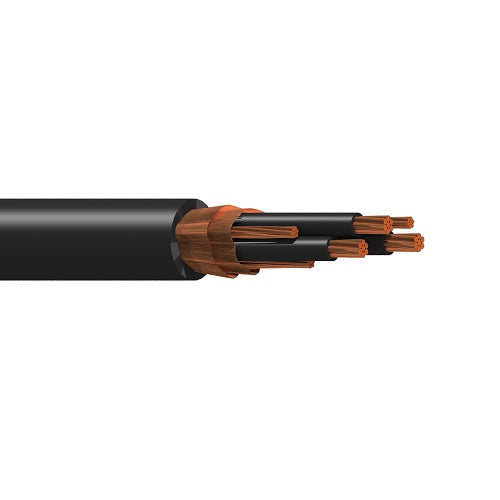

Belden 29723C 10 AWG 3 Conductor 7x18 Stranding Bare Copper 2000V Variable Frequency Drives Cable

Description:

Belden Basics VFD, 3 Conductor 10 AWG (7x18) Bare Copper XLPE Insulation M4 Color Code + 10 AWG Symmetrical Segmented Ground (3 of 14 AWG) Bare Copper Stranded, Overall Dual Copper Tapes Helically Applied Shield, Black PVC Outer Jacket, 2000V TC-ER 90C Dry/Wet 1000V CSA AWM I/II A/B SUN RES DIR BUR Oil Resistant.

Insulation:

Element: Conductor(s):-
Material: XLPE - Cross-Linked Polyethylene (Thermoset)
Nom. Thickness: 0.063 in (1.6 mm)
Nom. Insulation Diameter: 0.238 in (6.05 mm)

Element: Ground:-
No Insulation

Outer Shield:

• Shield Type: Helical Tape
• Material: Bare Copper (BC)
• Coverage: 100%

• Shield Type: Helical Tape
• Material: Bare Copper (BC)
• Coverage: 100%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.063 in (1.6 mm)
• Nom. Diameter: 0.651 in (16.5 mm)
• Overall Cable Diameter (Nominal): 0.651 in (16.5 mm)

Standards:-

• Operating Temperature Range: -40°C To +90°C
• Conductor(s) Nom. Characteristic Impedance: 46 Ohm
• UL Voltage Rating: 2000 V (TC), 1000 V (CSA AWM I/II A/B)

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems; High voltage requirements
