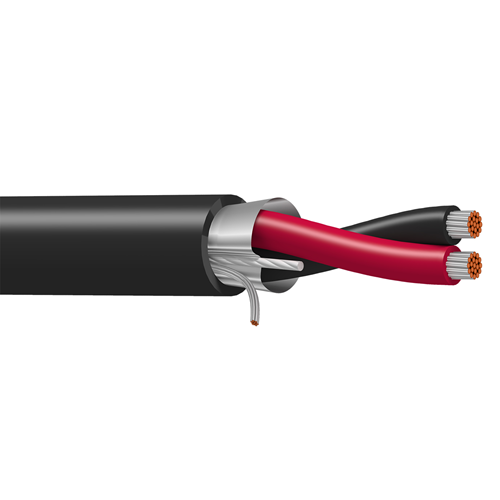

Belden 9316 16 AWG 1 Pair 19x29 Stranding Tinned Copper 300V Instrumentation PLTC Cable

Description:

High Performance Instrumentation, 1 Pair 16 AWG (19x29) Tinned Copper, PVC Insulation E2 Color Code, Overall Beldfoil Shield, PVC Outer Jacket, PLTC.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.096 in (2.4 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 18 AWG (19x30) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.270 in (6.86 mm)
• Overall Cable Diameter (Nominal): 0.270 in (6.86 mm)

Standards:

• Voltage Rating: 300 V (PLTC, CMG)
• Operating Temperature: -30°C to +105°C

Applications:

• Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Specifications:

• Size (AWG): 16
• No. of Pair: 1
• Stranding: 19x29
• Conductor Material: TC - Tinned Copper
• Part Number: 9316
