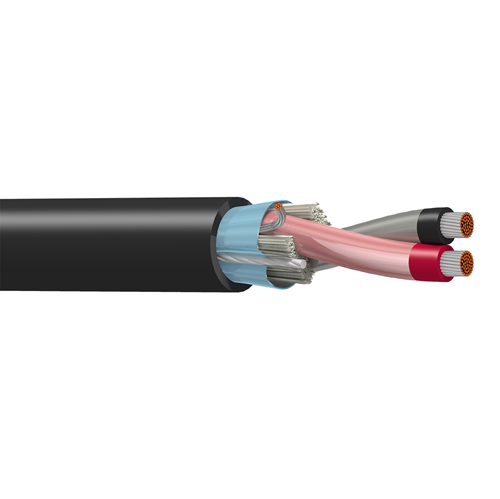

Belden 9344 12 AWG 1 Pair 37x27 Stranding Tinned Copper 600V Instrumentation Cable

Description:

High Performance Instrumentation, 1 Pair 12 AWG (37x27) Tinned Copper, PVC-NYL Insulation E2 Color Code, Overall Beldfoil Shield, Black PVC Outer Jacket, 600V TC.

Insulation:

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.027 in (0.69 mm)
• Nom. Insulation Diameter: 0.145 in (3.68 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 12 AWG (19x25) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.045 in (1.1 mm)
• Nom. Diameter: 0.384 in (9.75 mm)
• Overall Cable Diameter (Nominal): 0.384 in (9.75 mm)

Standards:

• UL Temperature: 90°C Dry, 90°C Wet
• Voltage Rating: 600 V (TC), 150 V (NPLF)
• Operating Temperature: -30°C to +90°C Dry, 75°C wet

Applications:

• Industrial Control, Raceways, Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...), low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS), programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners
