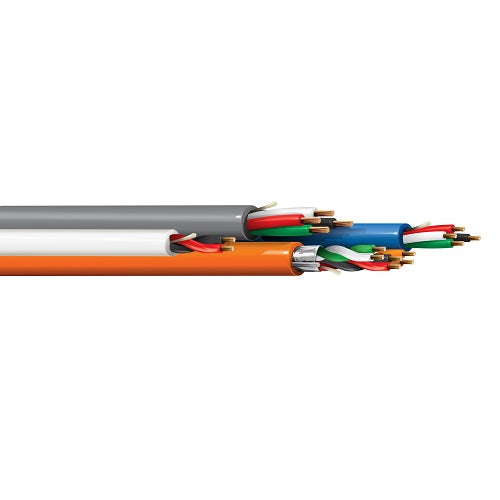

Belden 538AMS 18 AWG 7x26 Stranding 16 AWG 19x29 Stranding Bare Copper 300V Access Control Cable

Description:-

Access Control Cable, Riser-CMR, 3-18 AWG pairs, 4-16 AWG conductors, 4-18 AWG conductors, 2-18 AWG conductors, all conductors stranded bare copper with polyolefin insulation. Only Card Reader pairs have an overall Beldfoil shield and PVC jackets; Banana Peel has no overall jacket.

Insulation:-

Element: Card Reader: Pair(s)
• Material: PP - Polypropylene

Element: Door Contact: Conductor(s)
• Material: PP - Polypropylene

Element: REX/Spare: Conductor(s)
• Material: PP - Polypropylene

Element: Lock Power: Conductor(s)
• Material: PP - Polypropylene
• Nom. Insulation Diameter: 0.073 in (1.9 mm)

Inner Shield:-

Element: Card Reader: Pair(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Element: Door Contact: Conductor(s)
No Shield

Element: REX/Spare: Conductor(s)
No Shield

Element: Lock Power: Conductor(s)
No Shield

Inner Jacket:-

Element: Card Reader: Pair(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.272 in (6.91 mm)

Element: Door Contact: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.158 in (4.01 mm)

Element: REX/Spare: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.184 in (4.67 mm)

Element: Lock Power: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.210 in (5.33 mm)

Outer Jacket:-

• Nom. Diameter: 0.500 in (12.7 mm)
• Outer Jacket1 Table Notes: Banana Peel
• Overall Cable Diameter (Nominal): 0.500 in (12.7 mm)

Standards:-

• UL Voltage Rating: 300 V (UL CMR)
• Operating Temperature Range: 0°C to +75°C

Applications:-

• Access Control, Security System, Power Limited Controls

Specifications:-

Element: Card Reader: Pair(s)
• Size (AWG): 18
• No. of Pairs: 3
• Stranding: 7x26
• Conductor Material: BC - Bare Copper

Element: Door Contact: Conductor(s)
• Size (AWG): 18
• No. of Conductors: 2
• Stranding: 7x26
• Conductor Material: BC - Bare Copper

Element: REX/Spare: Conductor(s)
• Size (AWG): 18
• No. of Conductors: 4
• Stranding: 7x26
• Conductor Material: BC - Bare Copper

Element: Lock Power: Conductor(s)
• Size (AWG): 16
• No. of Conductors: 4
• Stranding: 19x29
• Conductor Material: BC - Bare Copper
• Part Number: 538AMS
