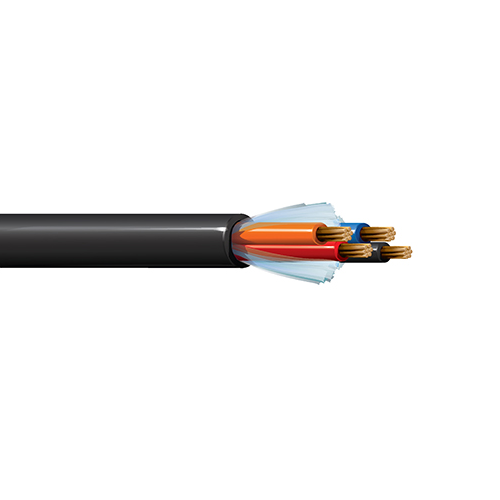

Belden A02142R 14 AWG 2 Conductor 7x22 Stranding Bare Copper 600V Type TC Cable

Description:-

UL Type TC (1277) PVC-Nylon/PVC, 2 Conductor 14 AWG (7x22) Bare Copper, PVC-NYL Insulation E2 Color Code, Black PVC Outer Jacket, 600V TC 90C Dry/Wet SUN RES DIR BUR.

Insulation:-

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.024 in (0.61 mm)
• Nom. Insulation Diameter: 0.116 in mm

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.047 in (1.2 mm)
• Nom. Diameter: 0.326 in
• Overall Cable Diameter (Nominal): 0.326 in

Standards:-

• UL Voltage Rating: 600 V
• Operating Temperature Range: -25°C To +90°C

Applications:-

• Power and Control Applications up to 600V

Specifications:-

• Size (AWG): 14
• No. of Conductors: 2
• Stranding: 7x22
• Conductor Material: BC - Bare Copper
• Part Number: A02142R
