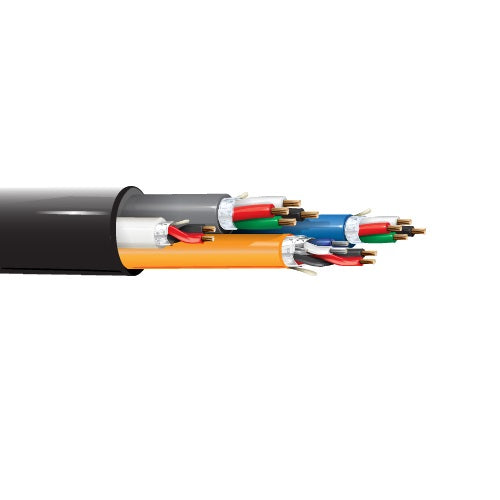

Belden 538HMD1 22 AWG 7x30 Stranding 18 AWG 7x26 Stranding 300V OSDP Access Control Cable

Description:-

OSDP Access Control Cable, Indoor/Outdoor CM OSDP 1PR 22 Shielded+18/2, 4-18 AWG conductors, 4-22 AWG conductors, 2-22 AWG conductors, Water-Blocking Tape, Overall PVC jacket, CM Rated.

Insulation:-

Element: Card Reader: Data Pair(s)
• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.029 in (0.74 mm)

Element: Card Reader: Power
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)

Element: Door Contact: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)

Element: REX/Spare: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)

Inner Shield:-

Element: Card Reader: Data Pair(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Element: Card Reader: Power
No Shield

Element: Door Contact: Conductor(s)
No Shield

Element: REX/Spare: Conductor(s)
No Shield

Inner Jacket:-

Element: Card Reader
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Diameter: 0.275 in (6.99 mm)

Element: Door Contact
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.168 in (4.27 mm)

Element: REX/Spare
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.187 in (4.75 mm)

Element: Lock Power
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.232 in (5.89 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.595 in (15.1 mm)
• Overall Cable Diameter (Nominal): 0.595 in (15.1 mm)

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C to +60°C

Applications:-

• Indoor/Outdoor: Access Control, Security System, Power Limited Controls, OSDP

Specifications:-

Element: Card Reader: Data Pair(s)
• Size (AWG): 22
• No. of Pairs: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Data Pair - 1 Pr. 22AWG Shielded, RS-485 - Reader

Element: Card Reader: Power
• Size (AWG): 18
• No. of Conductors: 2
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Power Pair - 2C 18AWG Unshielded

Element: Door Contact: Conductor(s)
• Size (AWG): 22
• No. of Conductors: 2
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

Element: REX/Spare: Conductor(s)
• Size (AWG): 22
• No. of Conductors: 4
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

Element: Lock Power: Conductor(s)
• Size (AWG): 18
• No. of Conductors: 4
• Stranding: 19x26
• Conductor Material: BC - Bare Copper
• Part Number: 538HMD1
