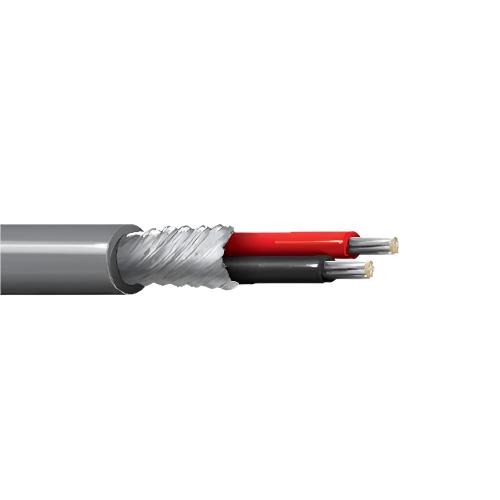

Belden YC45952 16 AWG 2 Conductor 7x24 Stranding Tinned Copper Multi-Conductor Cable

Belden YC45952 16 AWG 2 Conductor 7x24 Stranding Tinned Copper Multi-Conductor Cable

SKU: NESYC45952

FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $4.19 /FT
BEFORE   Now $4.19 /FT
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden YC45952 16 AWG 2 Conductor 7x24 Stranding Tinned Copper Multi-Conductor Cable

Description:-

16 AWG pairs stranded (7x24) tinned copper conductors, twisted pairs, PVC insulation, individually shielded, PVC jacket.

Insulation:-

• Material: Cross-Linked Polyethylene (XLPE)

Shielding:-

• Beldfoil aluminum foil-polyester tape inner shield (100% coverage)

Outer Jacket:-

• Material: Chlorinated Polyethylene (CPE)
• Outer Diameter (O.D.): 0.30 inche

Physical and Environmental Ratings:-

• Ampacity: 8 Amps
• UL Temperature Rating: 90°C
• Max. Pulling Tension: 411 lbs
• Minimum Bend Radius: 6.900 inches
• Operating Temperature Range: -30°C to 105°C (Wet/Dry)

Standards:-

• Operating temperature: -30°C to 105°C

Specifications:-

• Size (AWG): 16
• No. of Conductors: 2
• Stranding: 7x24
• Conductor Material: TC - Tinned Copper
• Part Number: YC45952
