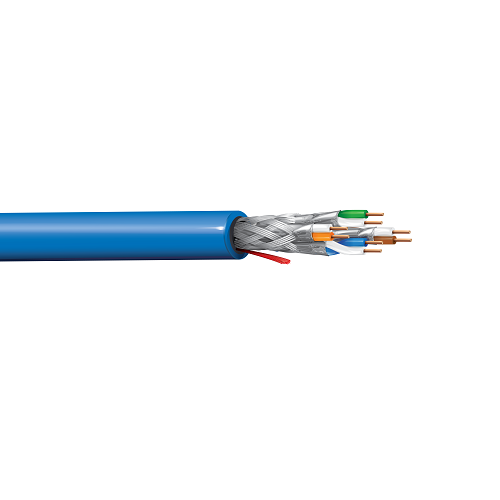

Belden 10GXE02 23 AWG 4 Pair Solid Bare Copper Category 6A Enhanced Premise 625MHz Horizontal Cable

Description:-

Category 6A Enhanced Premise Horizontal Cable (625MHz), 4-Pair, 23 AWG Solid Bare Copper conductors, S/FTP, Foam Polyethylene insulation, each pair with Beldfoil shield, tinned copper braid shield (30%), PE jacket

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 1.32 mm (0.0520 in)
• Element: Individual Shielded Pair

Cable Core:-

• Description: 4 pairs twisted together

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Element: Individual Shielded Pair
• Inner Shield Table Notes: Aluminum facing outside

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 30%

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Diameter: 6.9 mm (0.27 in)
• Overall Cable Diameter (Nominal): 7.0 mm (0.28 in)

Standards:-

• Voltage Rating: 72 V DC
• Operating Temperature Range: -30°C to +60°C

Applications:-

• Horizontal and building backbone cable; supports current and future Category 6A and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100Base-T, 10 Base-T, FDDI, ATM

Specifications:-

• Size (AWG): 23
• No. of Pairs: 4
• Stranding: Solid
• Data Category: Category 6A
• Conductor Material: BC - Bare Copper
• Part Number: 10GXE02
