2422880000 - IP67 M12 5-Pole Connector for Harsh Environments (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

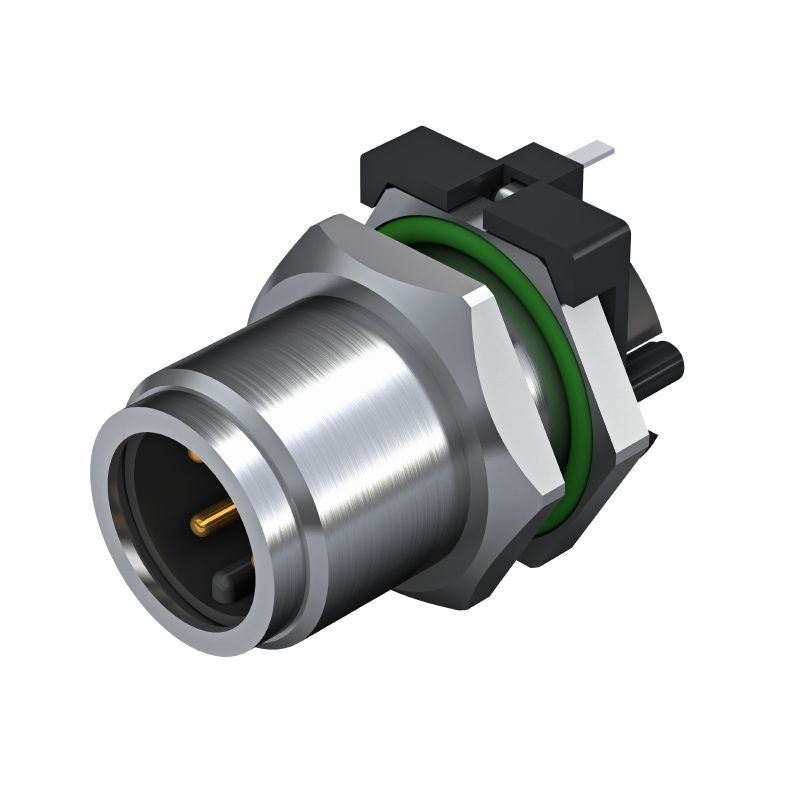

Introducing the M12 plug-in connector model SAIE-M12S-5-H10TL, engineered for versatility with its 5-pole configuration and M12 mounting thread Weighing just 144 grams, this connector is RoHS compliant, adhering to legislative standards and specific exemptions Built for demanding environments, it functions effectively across a temperature spectrum of -30 to 80 °C and is rated IP67, ensuring robust protection against dust and water ingress.

The nickel-plated housing enhances its longevity and reliability, making it a dependable choice for various applications.

Features and Benefits:

•A-coded for specific installation.

•Nickel-plated housing for enhanced durability.

•Maximum tightening torque of 0.8 Nm.

•Rear panel mounting type for flexible installation.

•Rated current capacity of 4 A.

•Ability to withstand ≥ 100 plugging cycles.

Specifications:
