Description:

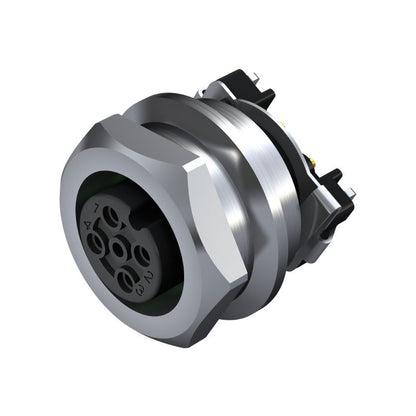

Introducing a premium M12 plug connector that boasts a robust design with 5 poles and a built-in plug feature This connector is fitted with an M14 mounting thread and is crafted from nickel-plated CuZn, ensuring durability It meets RoHS compliance and operates at a nominal voltage of 60 V With a compact installation height of just 9 mm, this connector is engineered for safe usage in temperatures ranging from -30 to 80 °C.

Additionally, it offers exceptional protection with an IP67 rating and supports a nominal current of 4 A, tailored to various pole configurations for versatile applications.

Features and Benefits:

•Nickel-plated housing for durability.

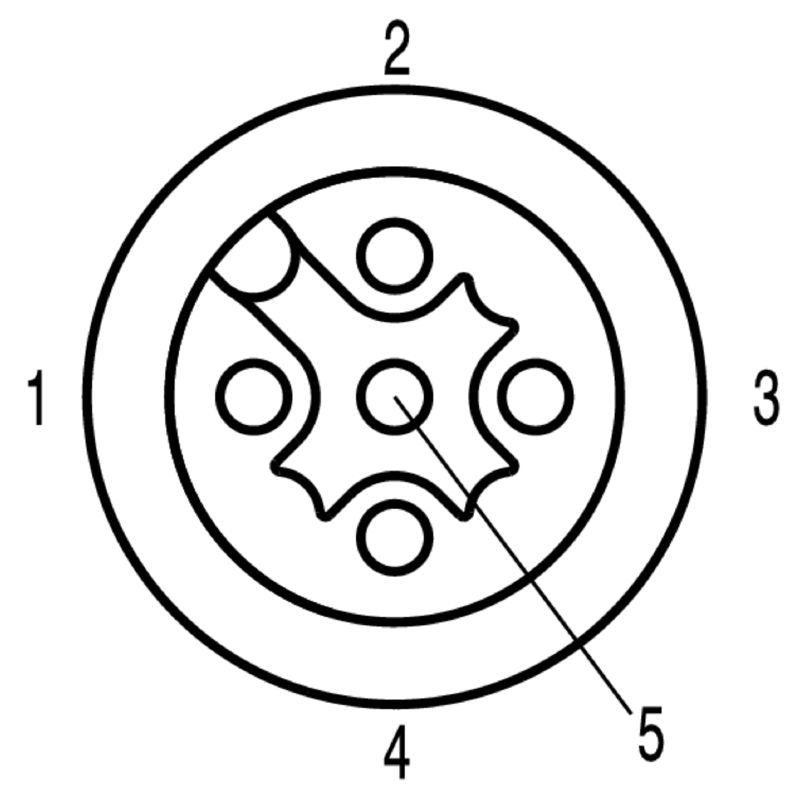

•A-coded for compatibility.

•Rated for 100 plugging cycles.

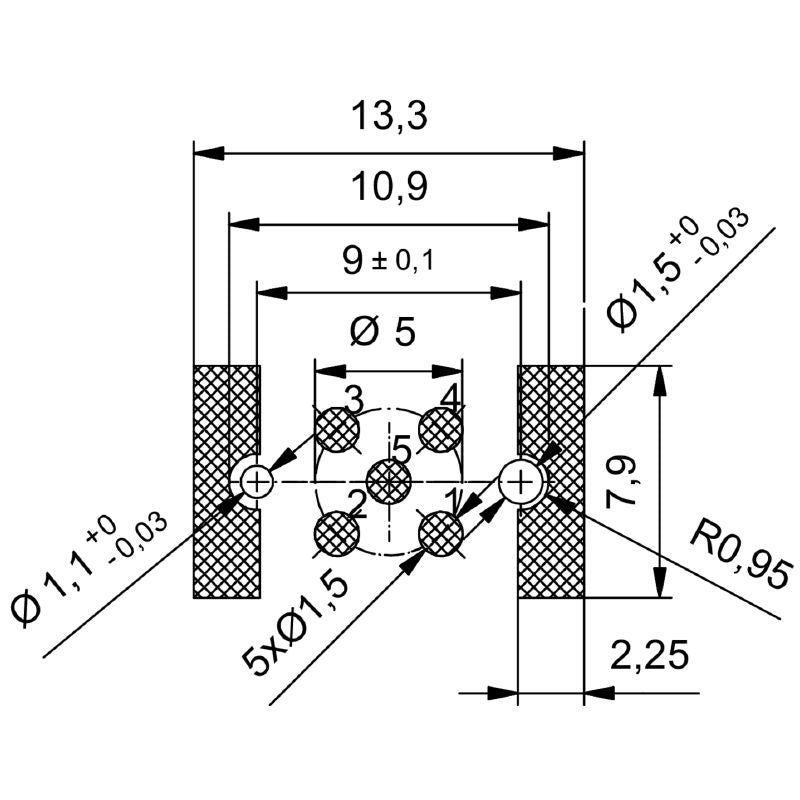

•SMD solder connection for PCB mounting.

•Insulation resistance of 100 MΩ.

•Protection degree of IP67 against dust and water.

Specifications:

Number of poles	5
Nominal voltage	60 V
Rated voltage	250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
Nominal current	4 A
Rated current	4 A (4- and 5-pole) / 2 A (8-pole)
Temperature range	-30…80 °C
Protection degree	IP67
Contact surface	Au (Gold)
Housing main material	CuZn
Connection thread	M12
Tightening torque	0.8 Nm

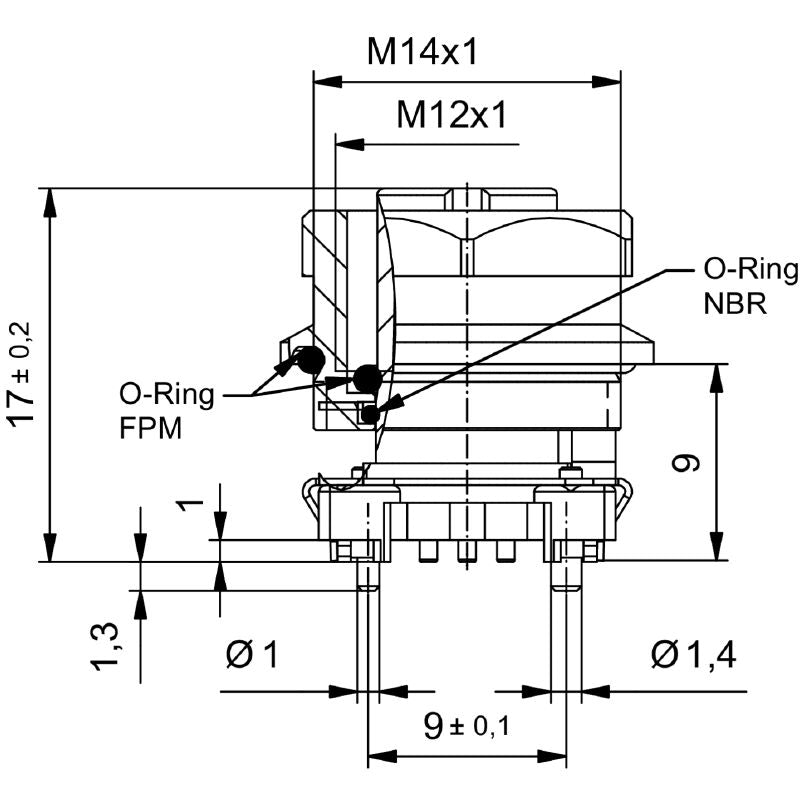

Mounting thread	M14
Mounting torque max	1.2 Nm
Pollution severity	3 (2 within the sealed area)
Plugging cycles	≥ 100
Contact material	Cu-alloy
Lock nut material	Nickel-plated CuZn
