2423710000 - M12 5-Pole Connector with M14 Thread, IP67 Rated (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

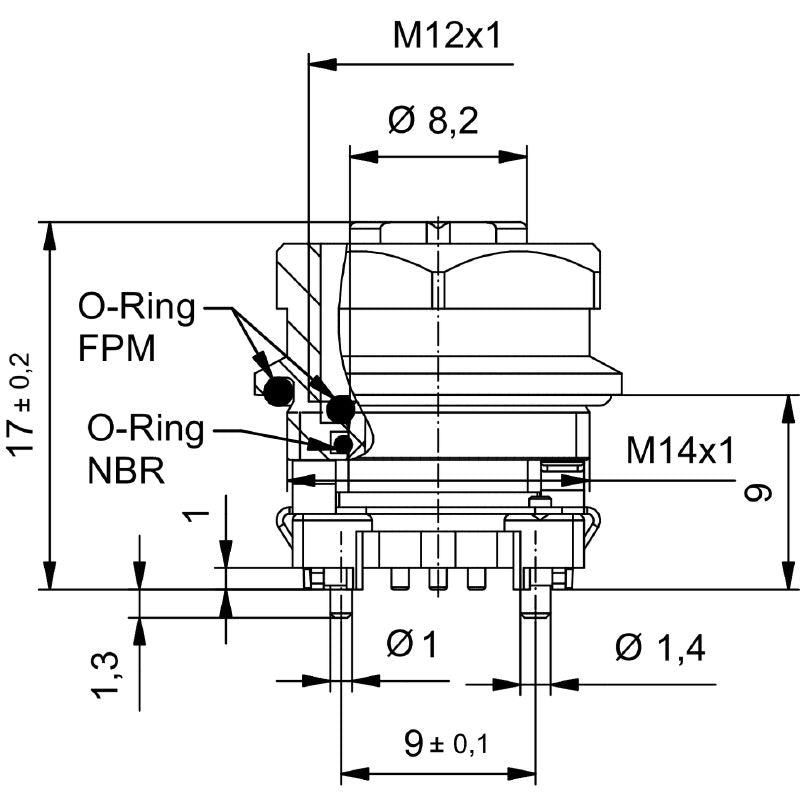

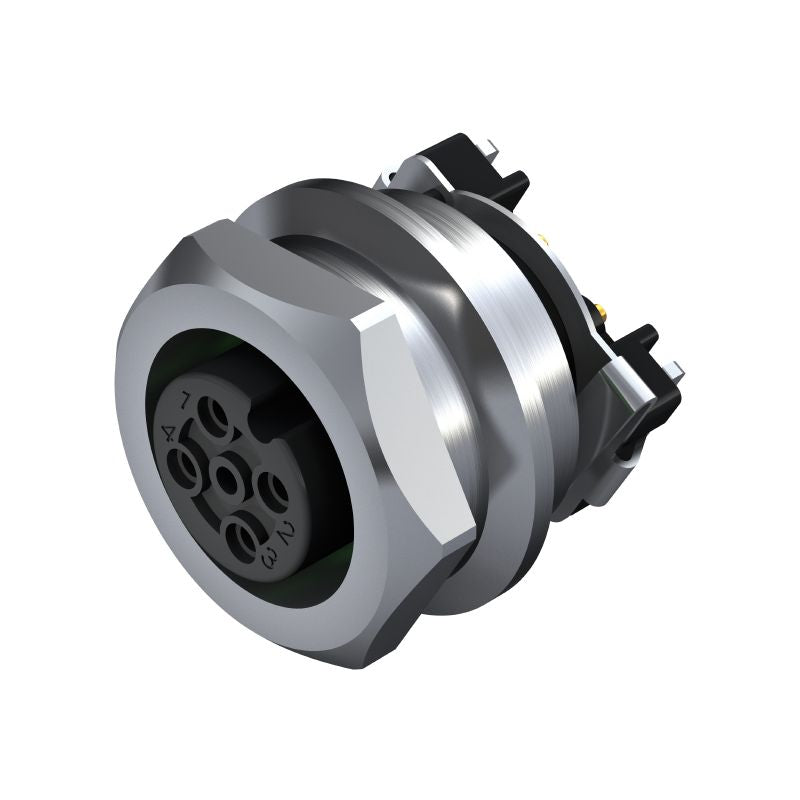

Introducing the SAIE-M12BB-5S-9/14SMT connector, an expertly engineered solution that includes built-in plugs for seamless connection This M12 connector is designed with an M14 mounting thread and accommodates up to 5 poles, making it versatile for various applications With a robust nickel-plated exterior and constructed from durable copper-zinc (CuZn), it meets RoHS regulations for safe use Ideal for demanding environments, this connector operates efficiently within a temperature range of -30°C to 80°C and boasts an IP67 rating for exceptional protection against dust and water.

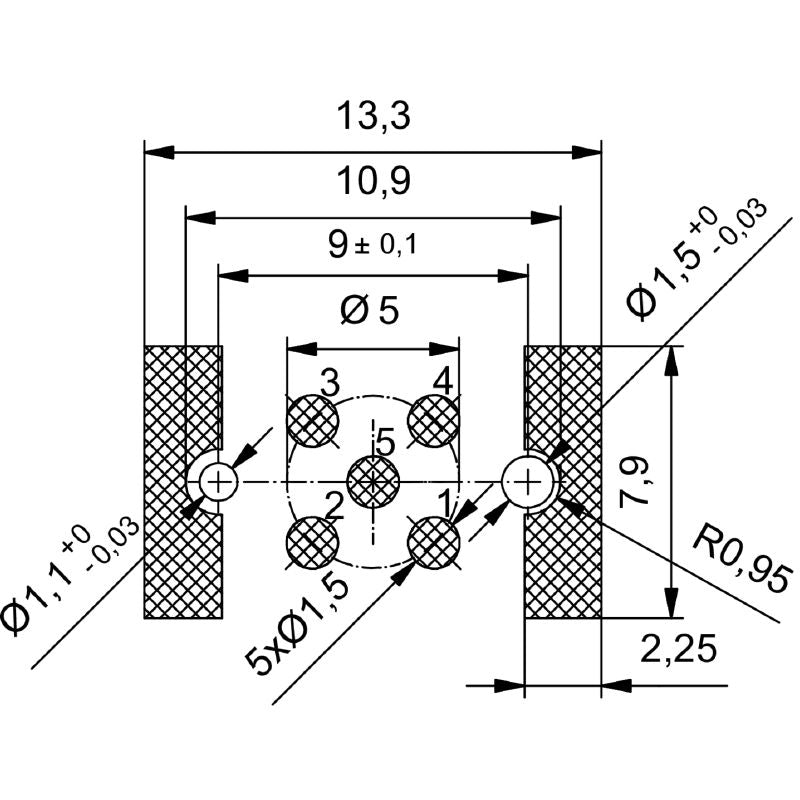

It supports a rated voltage of 250 V for 4-pole setups and 60 V for 5-pole configurations, with a nominal current capacity of 4 A Designed for easy integration, this connector allows for PCB mounting via SMD solder connections.

Features and Benefits:

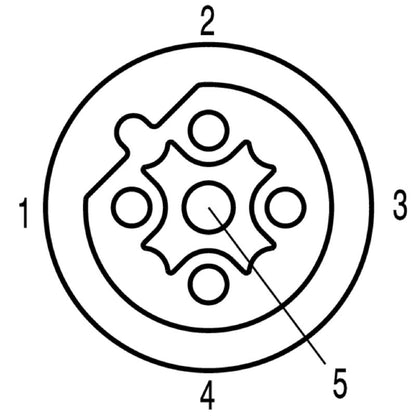

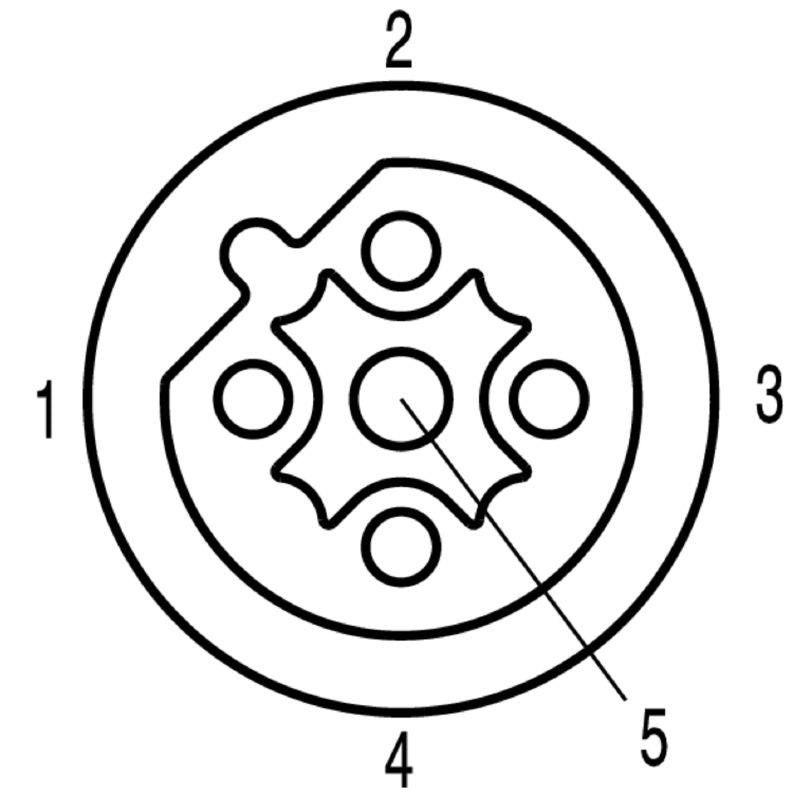

•B-coded for easy identification.

•Nickel-plated housing provides added corrosion resistance.

•Supports up to 100 plugging cycles ensuring longevity.

•Insulation resistance of 100 MΩ for enhanced safety.

Specifications:
