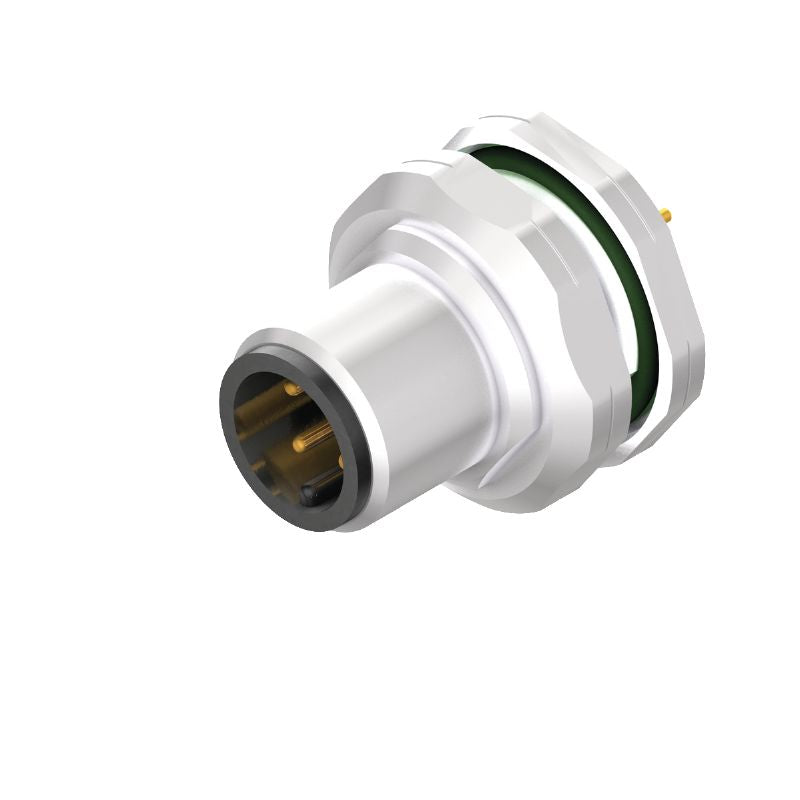

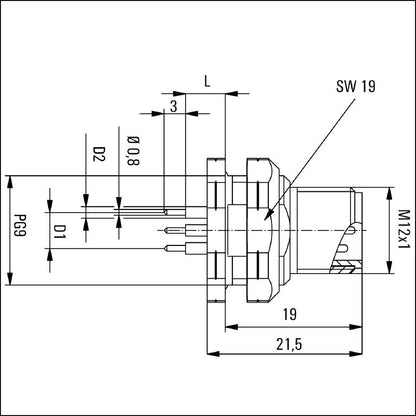

2422160000 - M12 5-Pole PCB Connector with PG9 Thread, IP67 Rated (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIE-M12S-5-H55TL-PG9, a specialized M12 PCB plug-in connector that features an integrated plug design This product includes a PG 9 mounting thread and accommodates up to 5 poles Compliant with RoHS regulations, it meets all applicable exemptions Additionally, it holds a REACH SVHC status for Lead 7439-92-1, emphasizing its commitment to environmental safety This connector is capable of handling a nominal voltage of 60 V and supports a rated voltage of up to 250 V in a 4-pole setup.

With a nominal current rating of 4 A, it performs effectively across a temperature range of -30 to 80 °C, and is protected against moisture and dust with an IP67 rating.

Features and Benefits:

•Designed for rear panel mounting.

•Compliant with RoHS and REACH standards.

•IP67 protection rating for dust and water resistance.

•Ability to withstand at least 100 plugging cycles.

Specifications:
