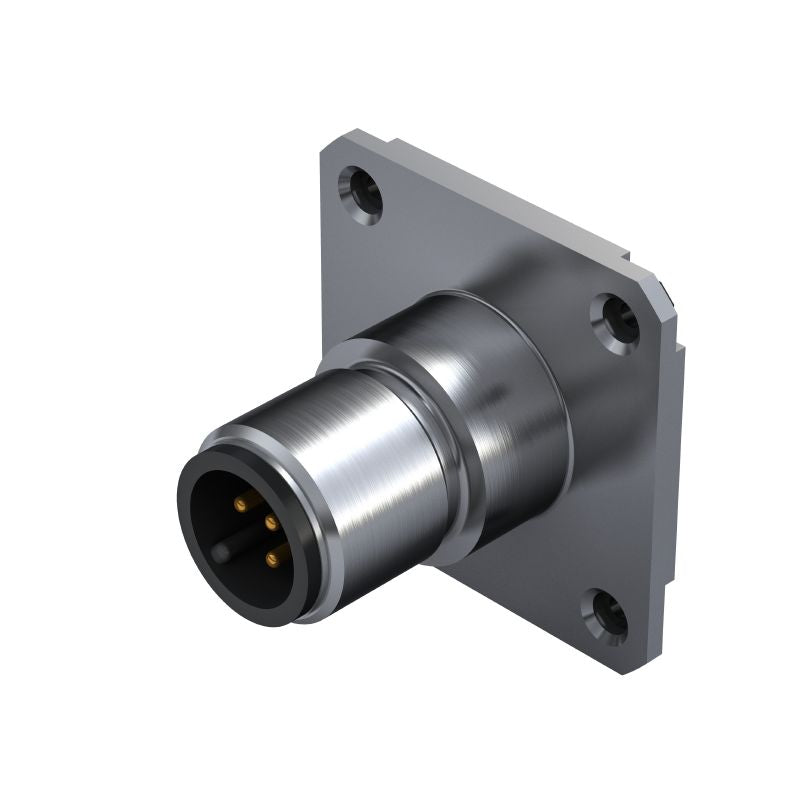

2424370000 - M12 5-Pole Connector IP67, Nickel-Plated, 4A, -30°C to 80°C (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 connector, a robust solution built to enhance your connectivity needs Featuring built-in plugs with five poles, this connector is crafted with a durable nickel-plated housing for lasting performance It operates at a nominal voltage of 60 V, with a rated voltage of 250 V for the four-pole configuration and 60 V for the five-pole setup, while supporting a current capacity of 4 A Designed for versatility, the M12 connector functions efficiently within a temperature range of -30°C to 80°C and ensures optimal performance with an IP67 protection rating, making it resistant to dust and water ingress.

Engineered for longevity, it can endure at least 100 plugging cycles and includes gold-plated contact surfaces for reliable electrical connections Weighing a light 20 grams, this connector adheres to RoHS standards, with a specific exemption for lead Additionally, it features a front mounting type design without a shield connection for easy installation Upgrade your device connectivity with this reliable M12 connector!.

Features and Benefits:

•Gold contact surface.

•Nickel-plated housing.

•IP67 protection degree.

•Front mounting type.

•Five poles configuration.

•Operating temperature range of -30°C to 80°C.

•Minimum of 100 plugging cycles.

Specifications:
