2424110000 - M12 Nickel-Plated Connector, 4-Pole with Rear Mounting (Pack of 10)

2424110000 - M12 Nickel-Plated Connector, 4-Pole with Rear Mounting (Pack of 10)

SKU: 2424110000   Download PDF

Select a Variant:
  • 2424110000 - M12 Nickel-Plated Connector, 4-Pole with Rear Mounting (Pack of 10)
Qty:
Now $63.04   Web pricing policy
BEFORE   $0.00 Now $63.04 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

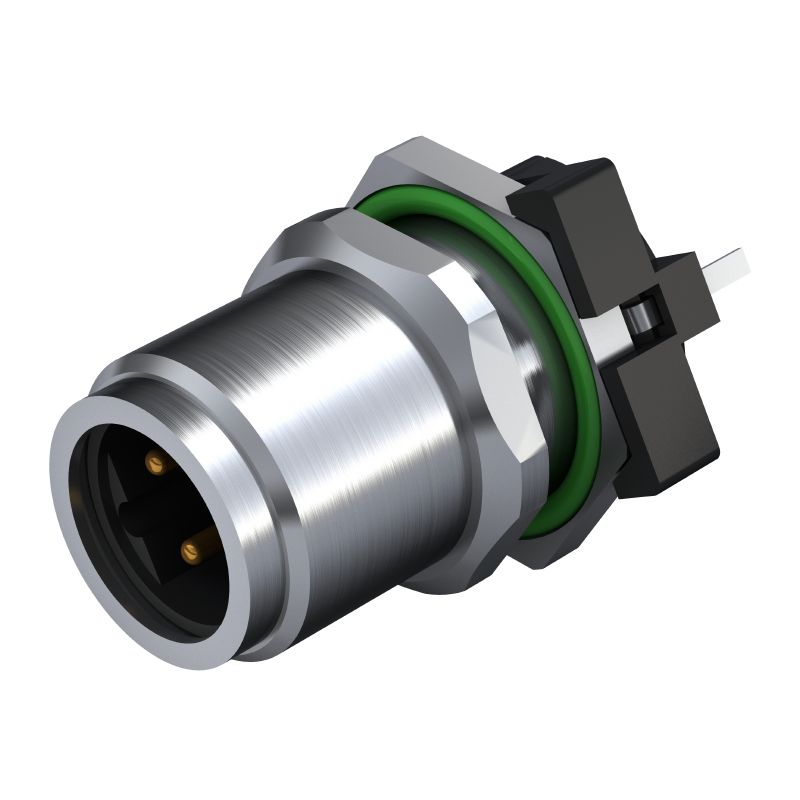

Upgrade your connectivity solutions with the M12 PCB plug-in connector This robust component features a four-pole configuration with built-in plugs, designed for versatility with its M12 mounting thread Constructed with a nickel-plated finish, it allows for rear panel mounting while supporting a nominal voltage of 250V and a current of up to 4A, making it an essential choice for reliable electrical connections.

Features and Benefits:

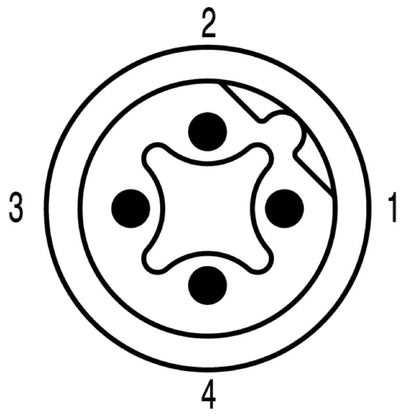

    •B-coded for enhanced compatibility.

    •IP67 protection degree, ensuring dust and water resistance.

    •Connection thread type is M12.

    •Rated for a temperature range of -30 to 80 °C.

    •Supports a high level of plugging cycles, ≥ 100.

Specifications:

 Number of poles 4

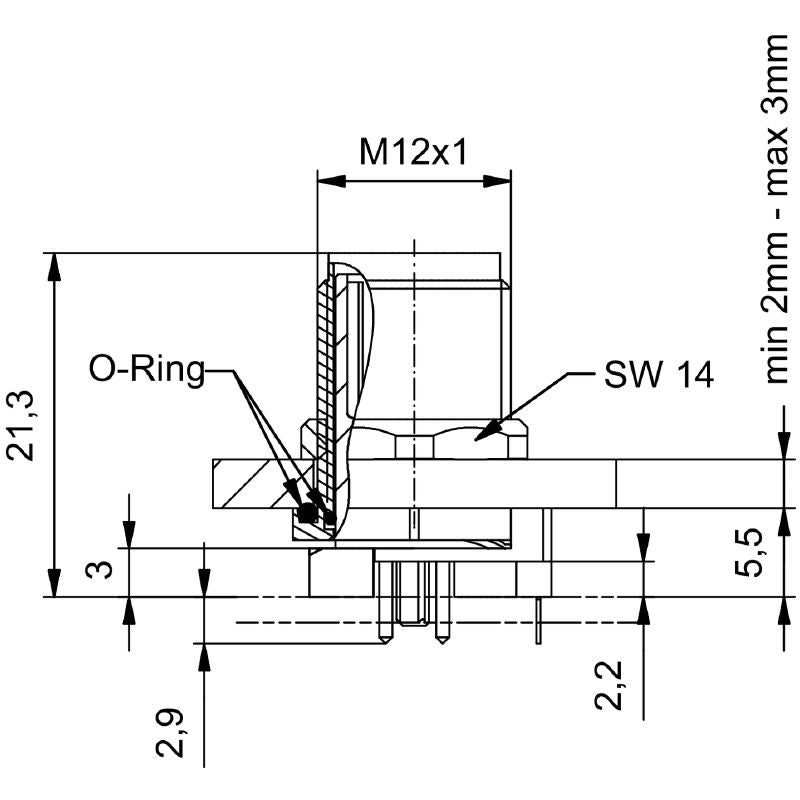

 Installation height 5.5 mm
 Nominal voltage 250 V
 Rated voltage 250 V
 Nominal current 4 A
 Rated current 4 A
 Tightening torque M12: 0.8 Nm
 Mounting torque max. 1.2 Nm

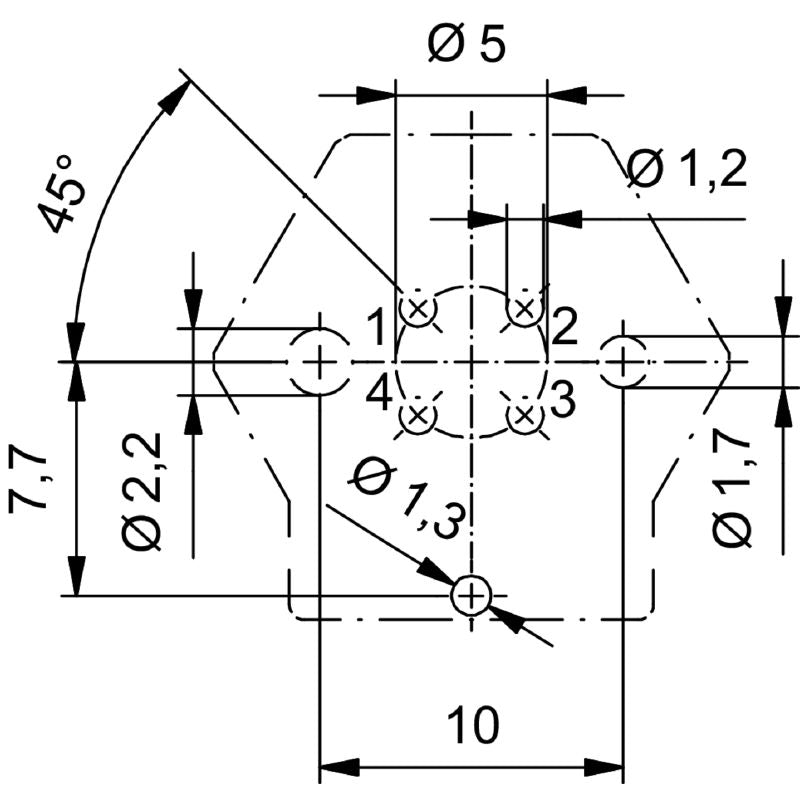

 Mounting onto the PCB Dip solder
 Insulation resistance 100 MΩ
 Pollution severity 3 (2 within the sealed area)
 Contact material Cu-alloy
 Contact surface Au (Gold)
 Lock nut material Nickel-plated CuZn
 Housing main material CuZn, nickel-plated
 Plugging cycles ≥ 100
 Protection degree IP67
 Connection thread M12
