Description:

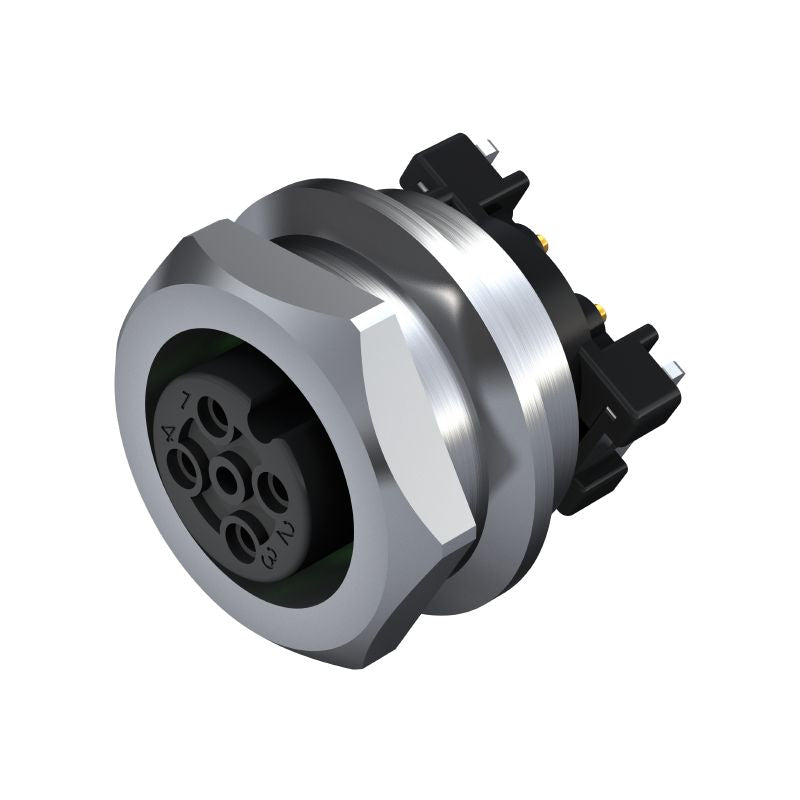

Introducing the SAIE-M12B-5-9SMT, a versatile product with integrated M12 connection plugs It features an M14 mounting thread and comes equipped with 5 poles connected at a specific length This item adheres to RoHS standards, particularly meeting exemption 6c, while also displaying a REACH SVHC status due to the presence of Lead 7439-92-1.

Features and Benefits:

•Nickel-plated housing.

•A-coded connector.

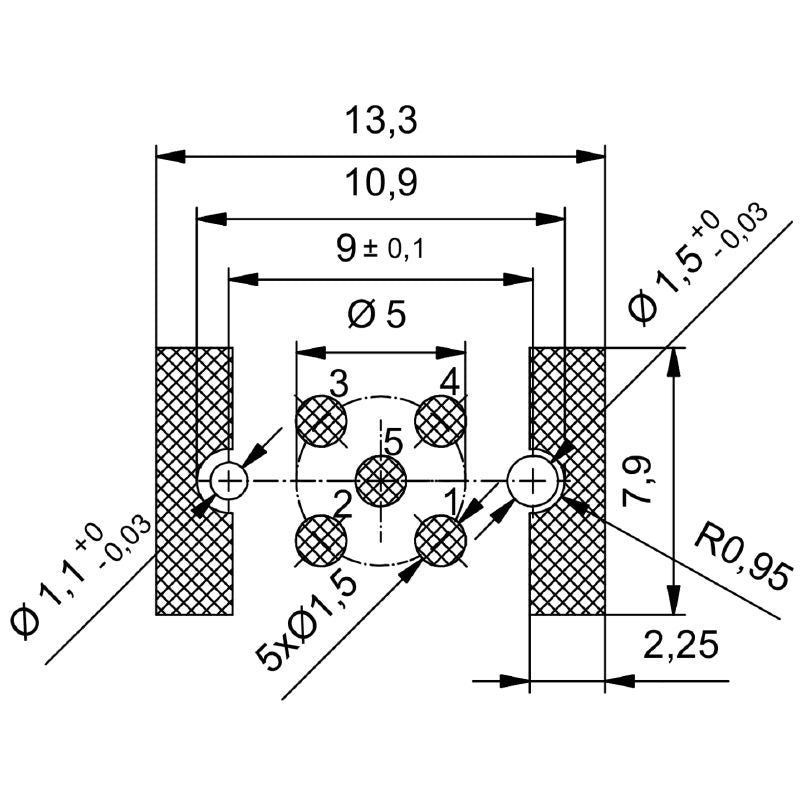

•Compatible with SMD solder connection.

•Protection degree of IP67.

•Insulation resistance of 100 MΩ.

•Plugging cycles greater than or equal to 100.

Specifications:

Mounting thread	M14
Number of poles	5
Nominal voltage	60 V
Rated voltage	250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
Nominal current	4 A
Rated current	4 A (4- and 5-pole) / 2 A (8-pole)
Temperature range	-30…80 °C
Contact surface	Au (Gold)
Housing main material	CuZn
Connection thread	M12
Tightening torque	M12: 0.8 Nm
Mounting torque max	1.2 Nm
Pollution severity	3 (2 within the sealed area)
Contact material	Cu-alloy
