Description:

Introducing a versatile built-in M12 plug, featuring a robust mounting thread of M 16 x 15 and equipped with 4 poles This connector adheres to RoHS regulations, benefiting from specific exemptions where applicable It is expertly crafted for various uses that require dependable connections The housing is constructed from durable nickel-plated CuZn, and the contact surface is elegantly gold-plated With a nominal voltage rating of 250 V and a current capacity of 4 A, this connector is designed for efficient performance.

The installation height measures a compact 55 mm, and it operates smoothly across a broad temperature spectrum of -30 to 80 °C, ensuring reliability in diverse environments.

Features and Benefits:

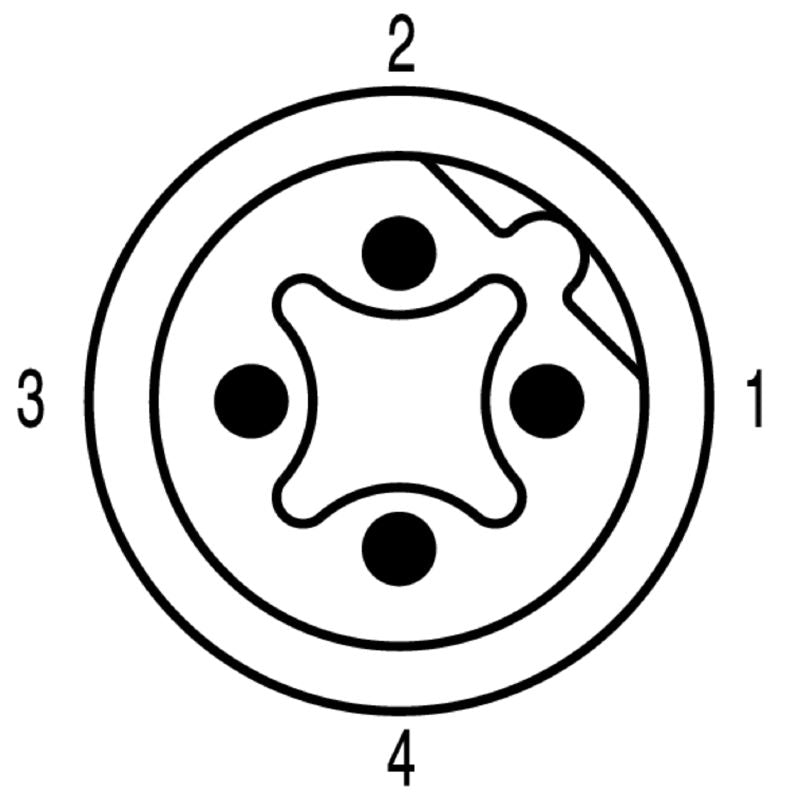

•B-coded coding.

•Nickel-plated housing surface.

•Designed for rear panel mounting.

•IP67 protection degree.

•Over 100 plugging cycles.

•Insulation resistance of 100 MΩ.

Specifications:

Order Number	2422370000
GTIN (EAN)	4050118430639
Strand / cable length
Rated voltage	250 V
Rated current	4 A
Protection degree	IP67
Contact material	Cu-alloy
Tightening torque	M12: 0.8 Nm
Mounting torque max	1.2 Nm
Pollution severity	3 (2 within the sealed area)
Contact surface	Au (Gold)
Number of poles	4
Connection thread	M12

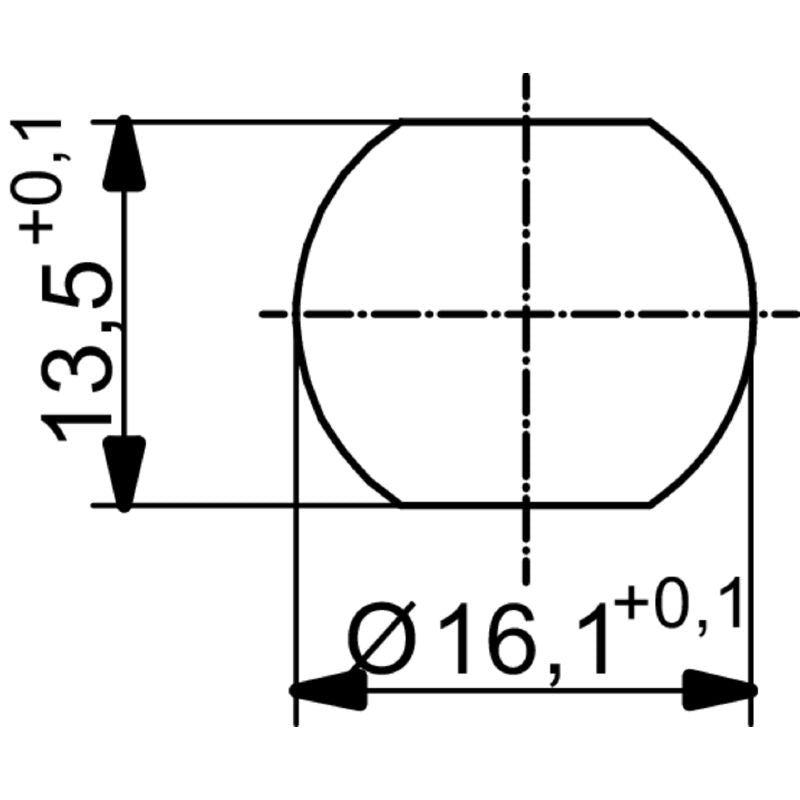

Mounting thread	M 16 x 1.5
Housing main material	CuZn, nickel-plated
Plugging cycles	≥ 100
