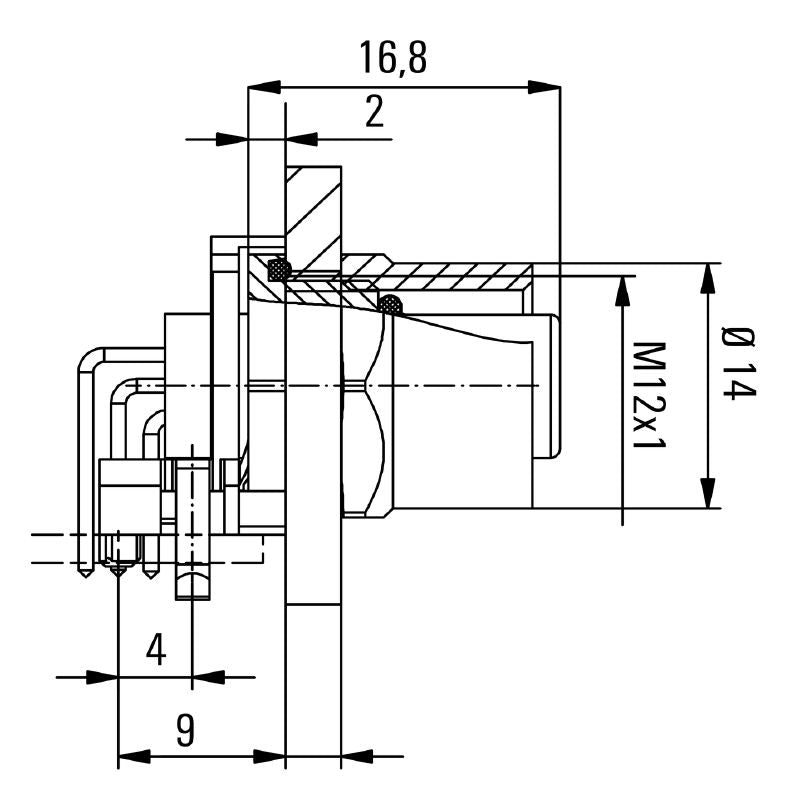

2423420000 - M12 Plug-In Connector, IP67, 4 Poles, -30 to 80°C (Pack of 10)

SKU: SKU: 2423420000 Download PDF

Select a Variant:

2423420000 - M12 Plug-In Connector, IP67, 4 Poles, -30 to 80°C (Pack of 10)

SET THE QTY:

Now $66.25 Web pricing policy

~~BEFORE $0.00~~ Now $66.25 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Enhance your connectivity with this M12 plug-in connector, featuring integrated plugs and an M12 mounting thread With four poles, it effectively supports a nominal voltage of 250 V and a nominal current of 4 A This robust connector operates in extreme conditions, offering a wide temperature range from -30 to 80 °C and an impressive IP67 protection rating, making it ideal for tough environments Additionally, the contact surfaces are crafted from gold for excellent conductivity and long-lasting performance.

Features and Benefits:

•Rear panel mounting type.

•No shield connection.

•Compatible with connection thread M12.

•Nickel-plated housing material.

•Achieves a high insulation resistance of 100 MΩ.

•Can endure over 100 plugging cycles.

Specifications:

Coding	A-coded
Housings	M12 socket
Number of poles	4
Nominal voltage	250 V
Rated voltage	250 V (4-pole) / 60 V (5-pole)
Rated current	4 A
Temperature range	-30…80 °C
Protection degree	IP67
Contact surface	Au (Gold)
Housing main material	CuZn nickel-plated
Connection thread	M12
Tightening torque	0.8 Nm
Mounting torque max	1.2 Nm
Mounting torque range	1.2 Nm
Pollution severity	3 (2 within the sealed area)
Lock nut material	Nickel-plated CuZn
Material of the flange-mounted housing	Nickel-plated CuZn
Insulation resistance	100 MΩ
Plugging cycles	≥ 100
Contact material	Cu-alloy
