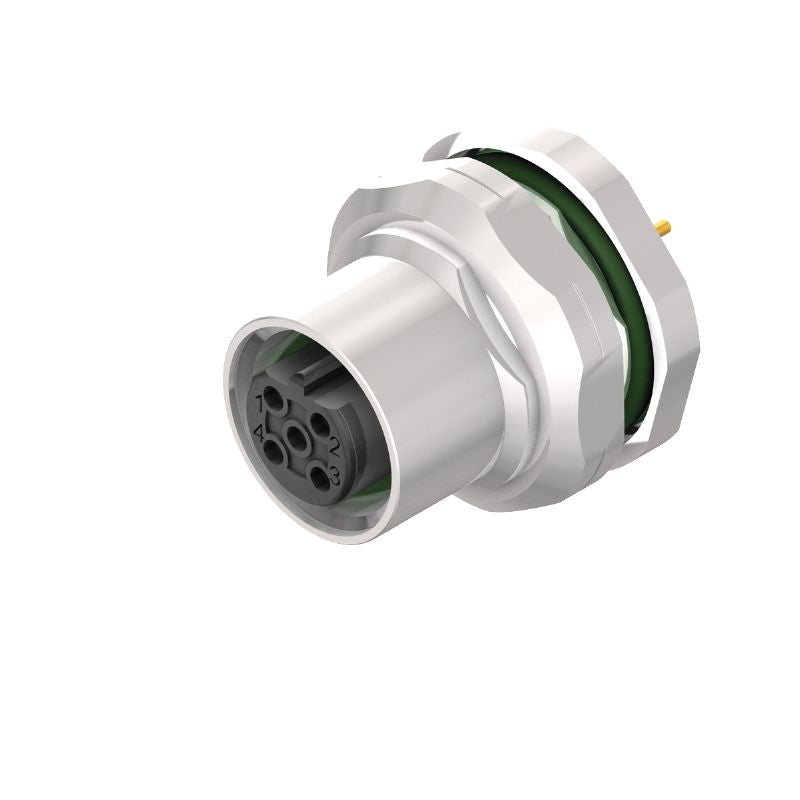

2424470000 - M12 Plug Connector, IP67, 4 Poles, RoHS Compliant (Pack of 10)

Description:

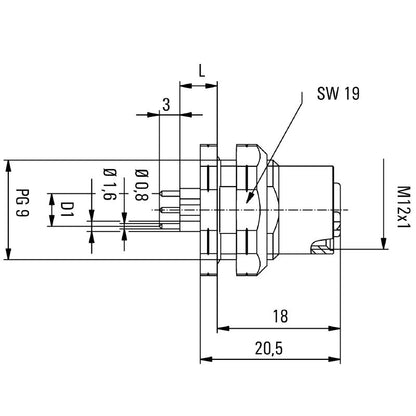

Introducing a reliable built-in M12 connector featuring a PG 9 mounting thread and a robust four-pole design Weighing just 20 grams, this connector adheres to RoHS regulations, ensuring it's free from harmful materials It boasts a wiring height of 12 mm and is rated with an IP67 protection level, allowing it to perform seamlessly in challenging environments The connector supports a nominal voltage of 250 V and a rated current of 4 A.

With an operating temperature range spanning from -30 to 80 degrees Celsius, you can count on its durability Enhanced with gold-plated contacts for optimal conductivity, this M12 connection can endure over 100 plugging cycles, making it both efficient and user-friendly.

Features and Benefits:

•RoHS compliant with exemption.

•D-coded for specific applications.

•Rear panel mounting type.

•Capable of withstanding a pollution severity rating of 3.

•Nickel-plated main housing for durability.

Specifications:
