2424400000 - M12 5-Pole Plug Connector, IP67, Front Mount, RoHS Compliant (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

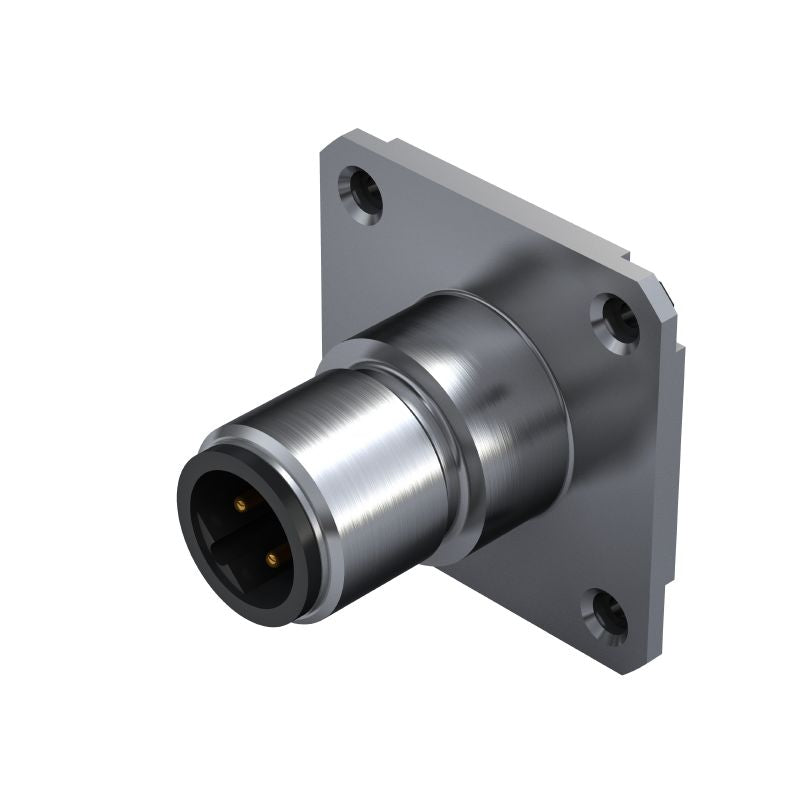

Introducing a robust built-in plug connector featuring M12 specifications, expertly designed for front mounting applications With a 5-pole configuration, this component meets RoHS compliance standards and holds an exemption for regulatory adherence It is ideal for settings that demand an IP67 protection rating and can operate efficiently across a broad temperature range of -30 °C to 80 °C.

Features and Benefits:

•The connector features a nickel-plated housing and an Au (Gold) contact surface..

•This model supports a nominal voltage of 60 V and a rated voltage of 250 V for the 4-pole variant..

•It has a nominal and rated current of 4 A and boasts a high insulation resistance of 100 MΩ..

•Suitable for robust use with a minimum of 100 plugging cycles..

•The housing is made of CuZn material which is nickel-plated..

Specifications:
