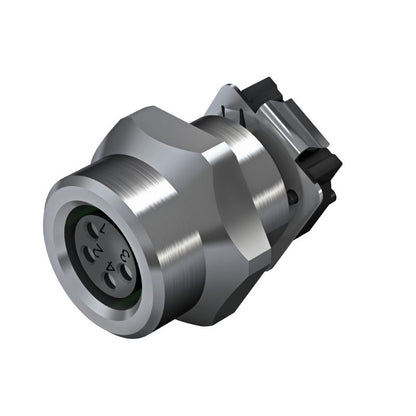

2422410000 - M8 4-Pole Connector with M10 Thread, RoHS Compliant (Pack of 25)

SKU: SKU: 2422410000 Download PDF

Variant:

2422410000 - M8 4-Pole Connector with M10 Thread, RoHS Compliant (Pack of 25)

Now $188.35

~~BEFORE $0.00~~ Now $188.35

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

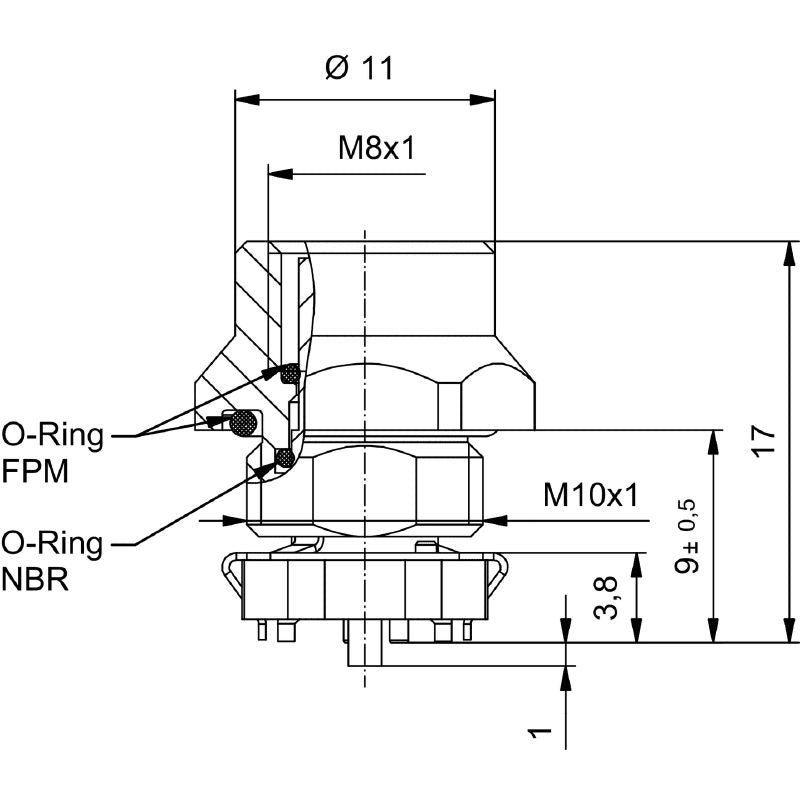

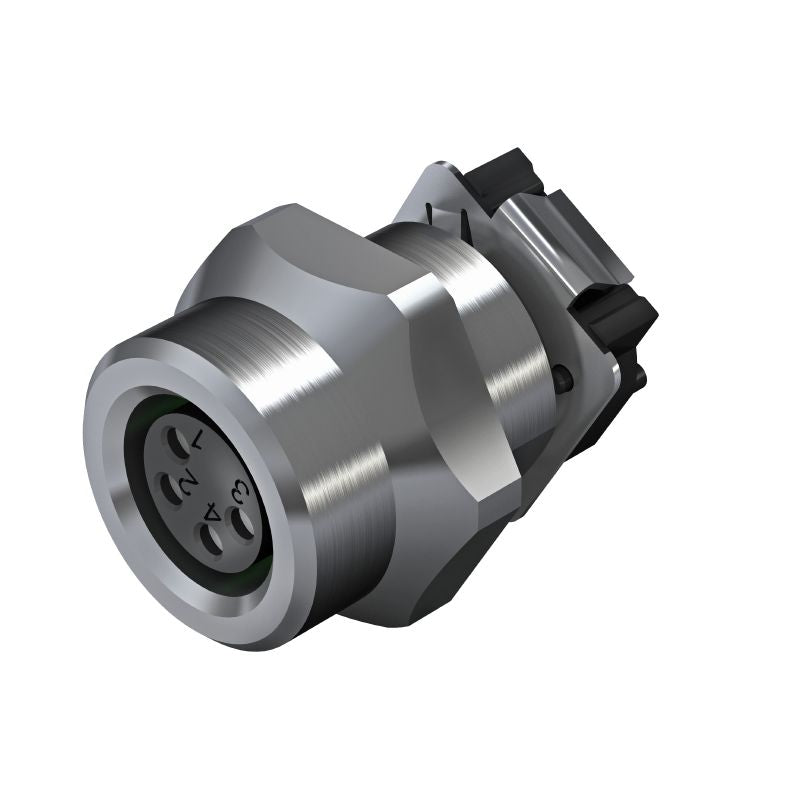

Introducing the SAIE-M8B-4S-F9SMT, a versatile built-in plug connector engineered with an M8 interface and an M10 mounting thread This connector is designed with four poles, making it ideal for a variety of applications that require these specifications Additionally, it is RoHS compliant, guaranteeing adherence to environmental safety standards.

Features and Benefits:

•Nickel-plated housing.

•IP67 protection degree for durability.

•Front mounting type for easy installation.

•Pluggable cycles rated at ≥ 100.

Specifications:

Number of poles	4
Housing main material	CuZn, nickel-plated
Connection thread	M8
Nominal voltage	30 V
Rated voltage	60 V (3-pole) / 30 V (4-, 5- and 8-pole)
Nominal current	4 A
Rated current	4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
Temperature range	-30…80 °C
Shield connection	Yes
Insulation resistance	100 MΩ
Tightening torque	M8: 0.5 Nm
Mounting torque max	0.8 Nm
Pollution severity	3 (2 within the sealed area)
Contact material	Cu-alloy
Contact surface	Au (Gold)
Seal material	FPM
