2424020000 - M12 4-Pole Socket, IP67, Nickel-Plated, 250V, -30 to 80 °C (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

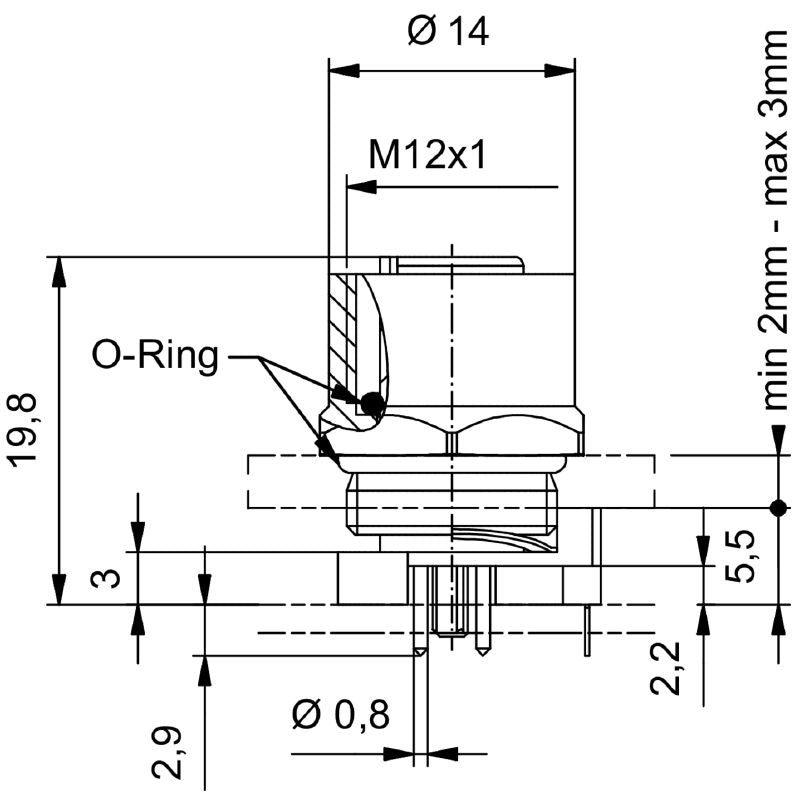

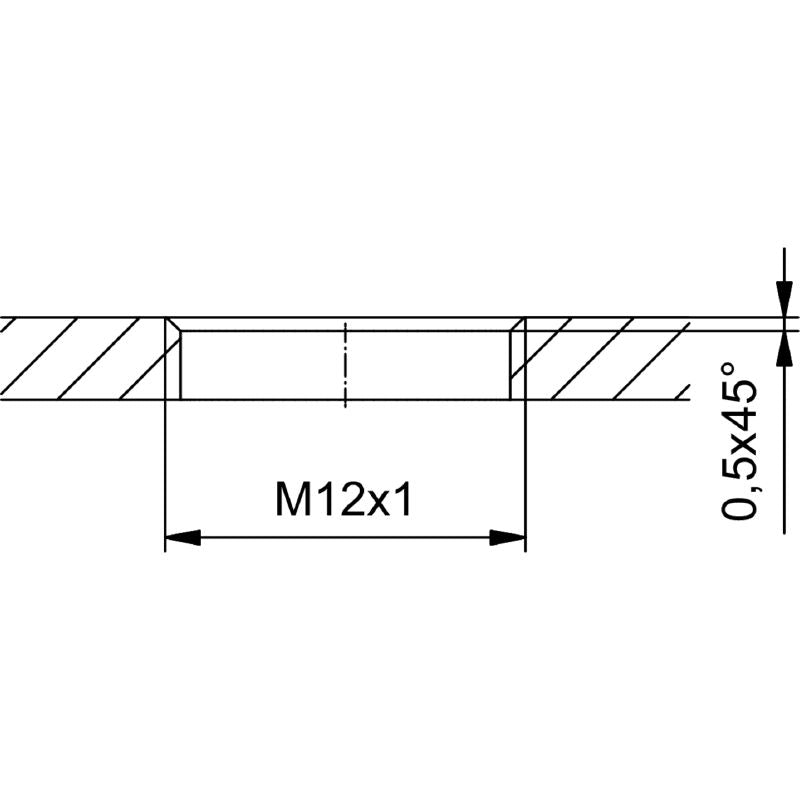

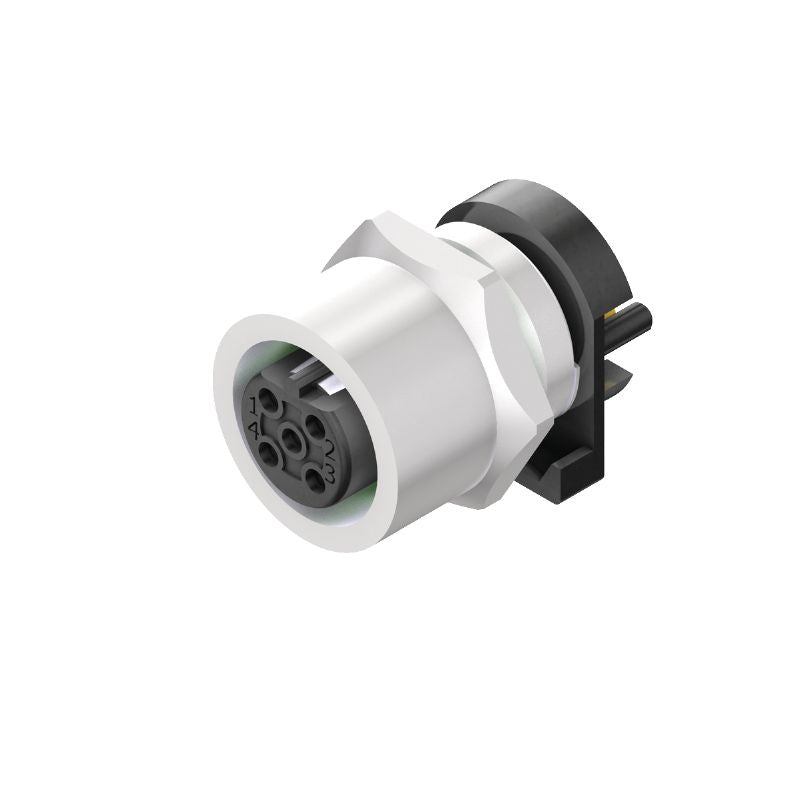

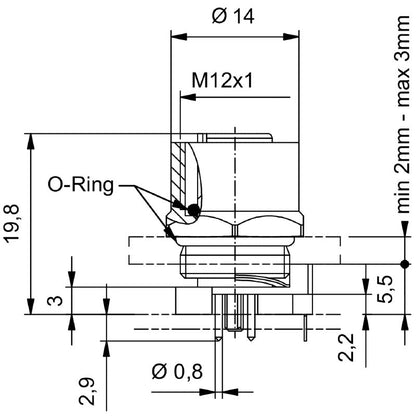

Discover the versatility of the M12 socket equipped with integrated plugs Engineered with a robust M12 mounting thread and four poles, this socket operates efficiently at a nominal voltage of 250V and a rated current of 4A It is built to perform optimally in extreme temperatures, ranging from -30 to 80 °C The housing, crafted from nickel-plated CuZn, promises longevity and resilience With an impressive IP67 rating, this socket is well-protected against dust and moisture invasion.

It meets RoHS compliance standards with listed exemptions, while its insulation resistance stands at a strong 100 MΩ Notably, it can endure over 100 plugging cycles, making it a reliable choice for various applications.

Features and Benefits:

•B-coded for specific application.

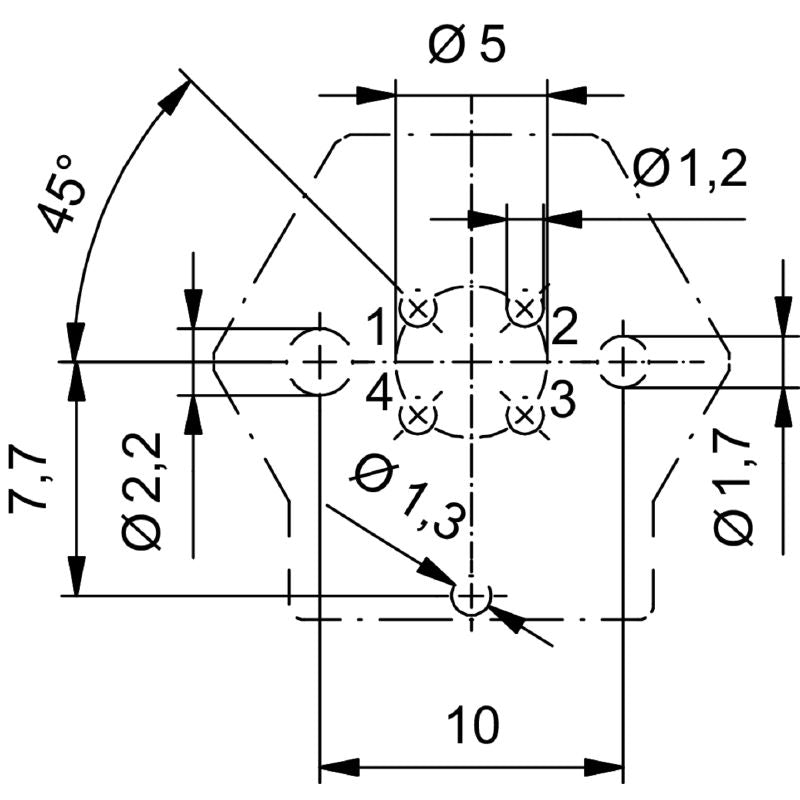

•Dip solder mounting for PCB.

•Excellent thermal range from -30 to 80 °C.

•IP67 rated for protection against dust and water.

•Nickel-plated surface enhances durability.

•More than 100 plugging cycles possible.

Specifications:
