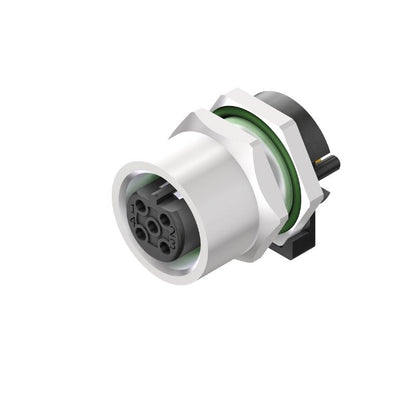

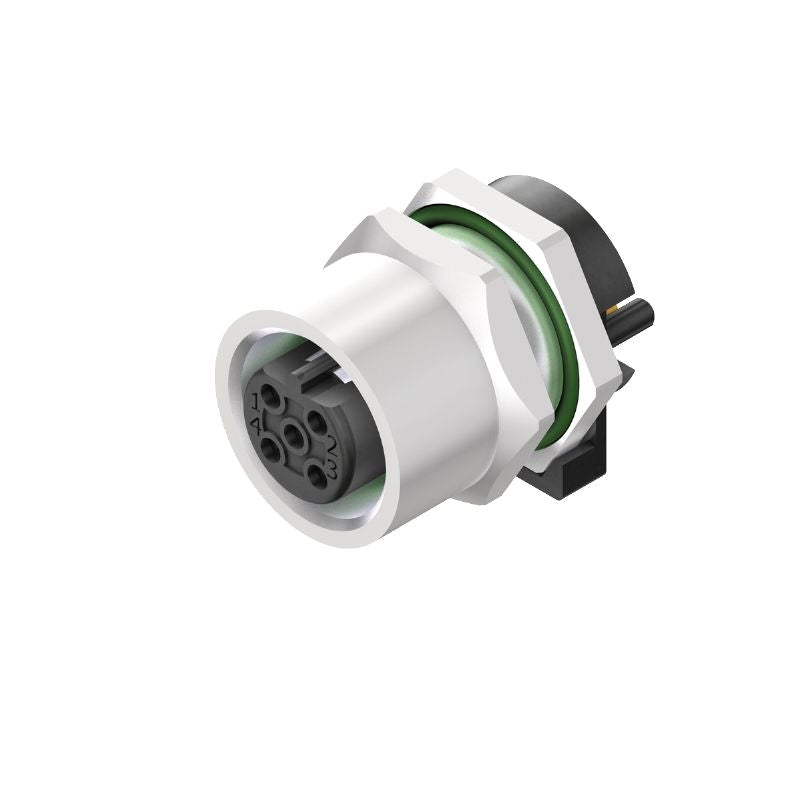

2424050000 - M12 4-Pole Built-in Connector with Reliable Plugs (Pack of 10)

2424050000 - M12 4-Pole Built-in Connector with Reliable Plugs (Pack of 10)

SKU: 2424050000   Download PDF

Select a Variant:
  • 2424050000 - M12 4-Pole Built-in Connector with Reliable Plugs (Pack of 10)
Qty:
Now $66.25   Web pricing policy
BEFORE   $0.00 Now $66.25 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a versatile built-in connector featuring M12 plugs, perfect for a range of applications This connector includes a robust M12 mounting thread and offers 4 poles for reliable performance Compliant with RoHS standards, it also includes an exemption for added assurance Weighing in at just 12056 grams, this connector is a dependable choice for your connectivity needs.

Features and Benefits:

    •M12 socket design.

    •Rear panel mounting type.

    •Shield connection support.

    •Nickel-plated housing surface.

    •Maximum mounting torque of 1.2 Nm.

    •Insulation resistance up to 100 MΩ.

    •Tightening torque specification of 0.8 Nm.

Specifications:

 Coding B-coded
 Installation height 5.5 mm
 Nominal voltage 250 V
 Rated voltage 250 V
 Nominal current 4 A
 Rated current 4 A
 Temperature range -30…80 °C
 Protection degree IP67
 Contact surface Au (Gold)
 Housing main material CuZn, nickel-plated
 Connection thread M12
 Plugging cycles ≥ 100
 Contact material Cu-alloy
 Lock nut material Nickel-plated CuZn
 Mounting onto the PCB Dip solder
 Pollution severity 3 (2 within the sealed area)
