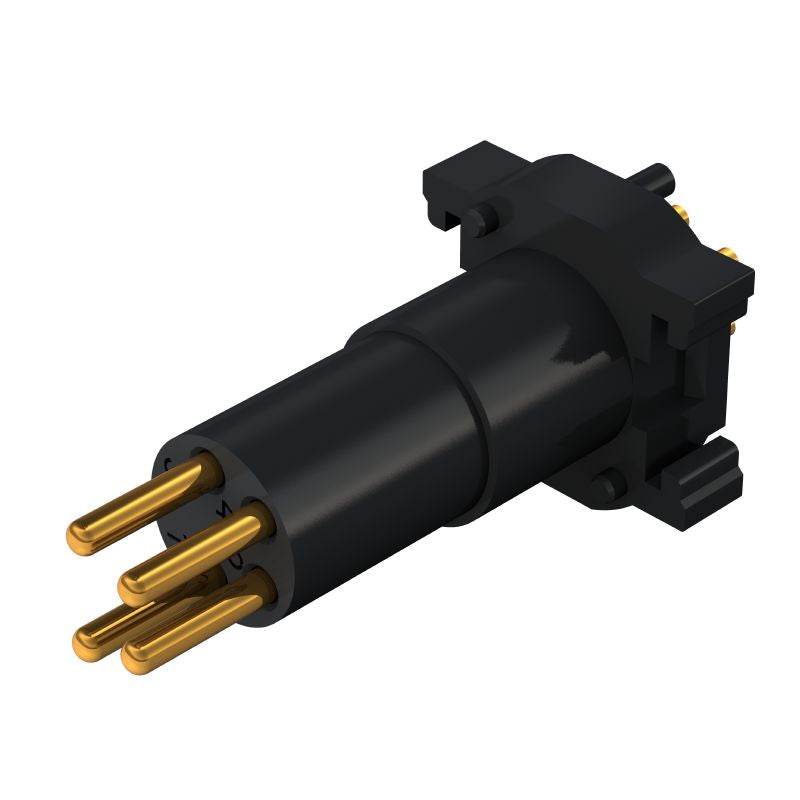

2423910000 - Durable RoHS Compliant M8 Connector with 4 Poles (Pack of 25)

SKU: SKU: 2423910000 Download PDF

Variant:

2423910000 - Durable RoHS Compliant M8 Connector with 4 Poles (Pack of 25)

Now $79.61

~~BEFORE $0.00~~ Now $79.61

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAID-M8S-4-THR, a robust connector equipped with a built-in M8 interface and 4 poles This connector meets RoHS standards and is backed by multiple environmental certifications, making it an excellent choice for applications that demand dependable connectivity, especially in challenging environments.

Features and Benefits:

•Compliant with RoHS exemptions.

•M8 pin housing.

•Protection degree IP67.

•Plugging cycles rated ≥ 100.

Specifications:

Nominal voltage	30 V
Rated voltage	60 V (3-pole) / 30 V (4-, 5- and 8-pole)
Nominal current	4 A
Rated current	4 A (3-, 4-, and 5-pole) / 1.5 A (8-pole)
Temperature range	-25…95 °C
Connection thread	M8
Tightening torque	0.5 Nm
Contact surface	Au (Gold)
Contact material	Cu-alloy
Housing main material	LCP
Lock nut material	Nickel-plated CuZn
Material of the flange-mounted housing	Nickel-plated CuZn
Pollution severity	3 (2 within the sealed area)
UL 94 flammability rating	V-0
Shield connection	No
