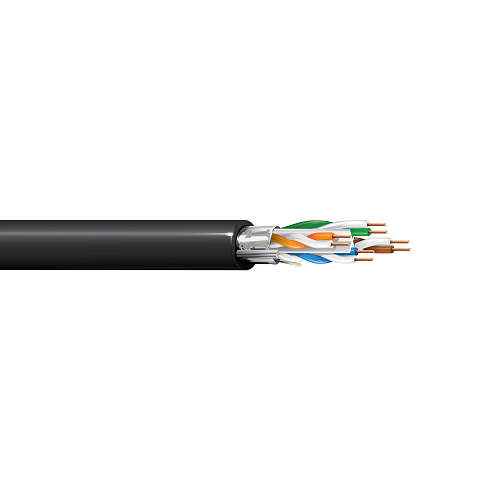

Belden 10GXW52 23 AWG 4 Pair Solid Bare Copper Category 6A Enhanced Premise 300V Horizontal Cable

Description:-

10GXW Category 6A Enhanced Premise Horizontal Cable (500MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Riser-CMR, PVC Jacket

Insulation:-

• Material: PO - Polyolefin

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 26 AWG (7x34) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.265 in (6.73 mm)

Standards:-

• UL Voltage Rating: 300 V (CMR), 300 V (CL3R)
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, Surveillance, HDBaseT, PoE++, PoE+, PoE, Noisy Environments

Specifications:-

• Size (AWG): 23
• No. of Pairs: 4
• Stranding: Solid
• Data Category: Category 6A
• Conductor Material: BC - Bare Copper
• Part Number: 10GXW52
