2423990000 - M12 PCB Connector, 4-Pole, IP67, -30 to 80°C (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

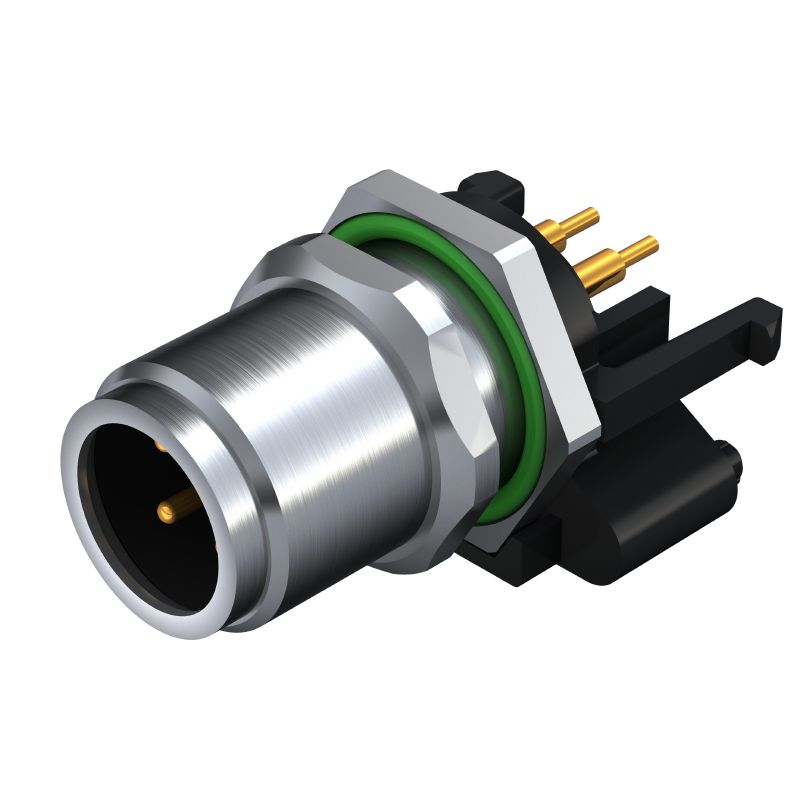

Introducing the SAIE-M12SB-4-H10TL PCB plug-in connector, a reliable connection solution featuring integrated M12 plugs This connector is designed with a robust M12 mounting thread and incorporates four poles for versatile connectivity Weighing just 15 grams, it adheres to RoHS standards with specific exemptions Engineered to perform in extreme conditions, it operates effectively within a temperature range of -30 to 80 degrees Celsius and boasts an IP67 rating, making it ideal for use in challenging environments.

Features and Benefits:

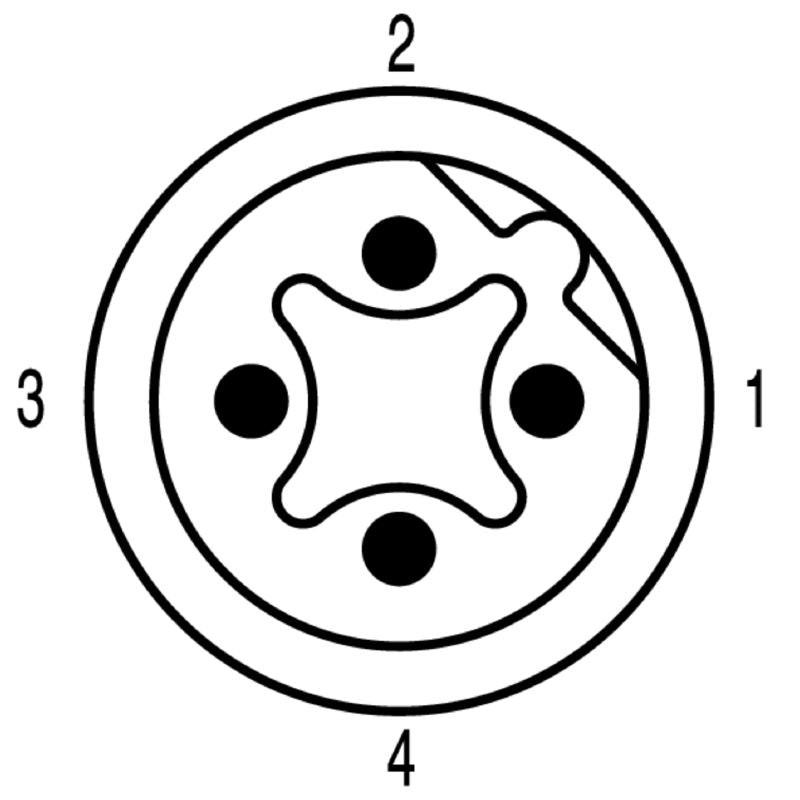

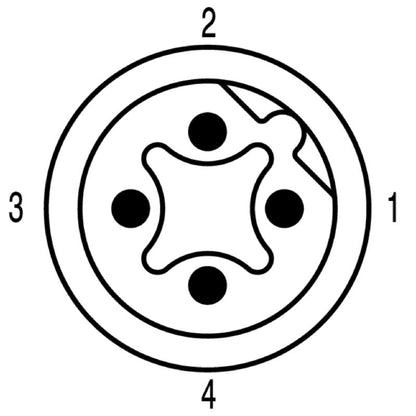

•Coding type is B-coded.

•Housing surface is nickel-plated.

•Shield connection is included.

•Type of mounting is rear panel mounting.

•Nominal current rating is 4A.

•Rated voltage is 250V.

•Insulation resistance is 100 MΩ.

•Plugging cycles are ≥ 100.

•Mounting torque max. is 1.2 Nm.

Specifications:
