2424320000 - M12 4-Pole PCB Connector with IP67 Protection (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Upgrade your connectivity options with this M12 PCB plug-in connector Crafted for reliable performance, it features a built-in plug and a four-pole design with a coding type B The connector showcases a robust nickel-plated housing and is optimized for front mounting applications Capable of handling nominal voltages of 250V and a rated current of 4A, it operates effectively within a temperature range of -30 to 80 degrees Celsius.

With an IP67 protection rating, it guarantees durability in challenging environments and can withstand over 100 plugging cycles, making it a dependable choice for your projects.

Features and Benefits:

•Nickel-plated housing surface.

•IP67 protection degree.

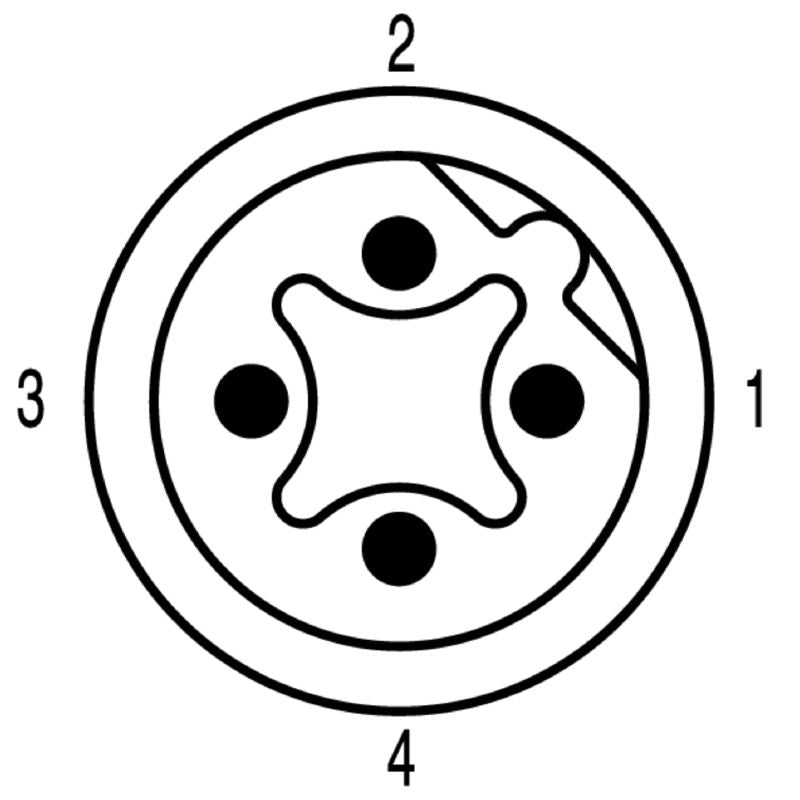

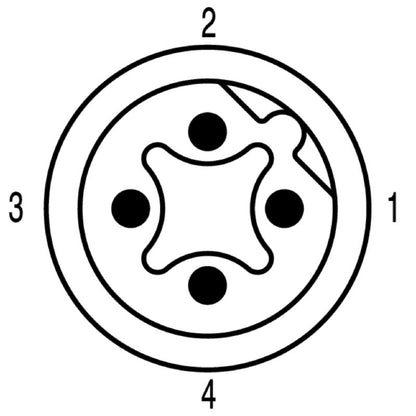

•Four poles.

•Front mounting type.

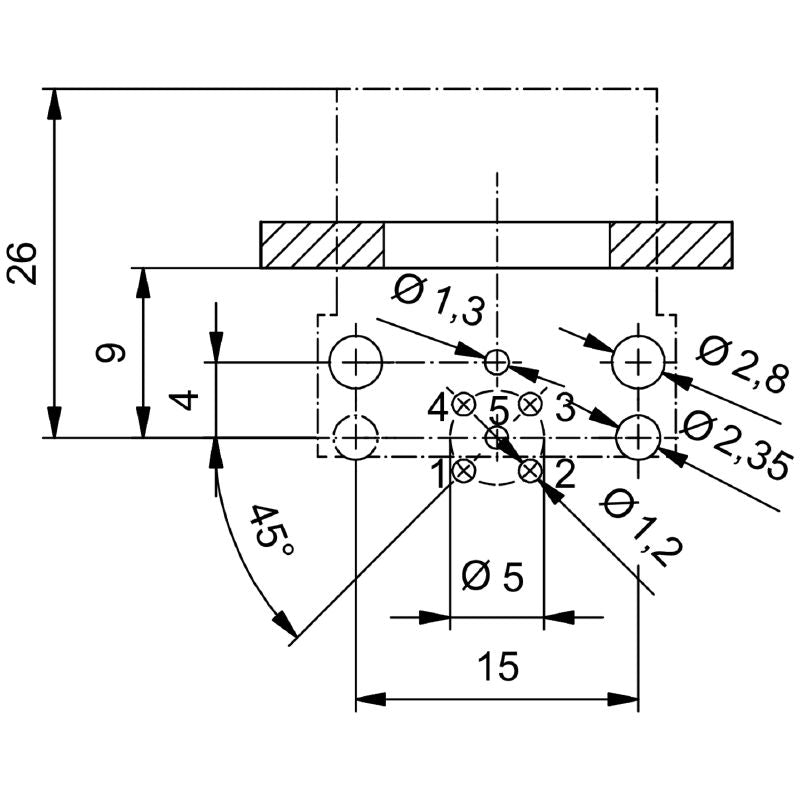

•Suitable for dip solder mounting onto PCB.

•Can handle temperatures from -30 to 80 °C.

•Insulation resistance of 100 MΩ.

Specifications:
