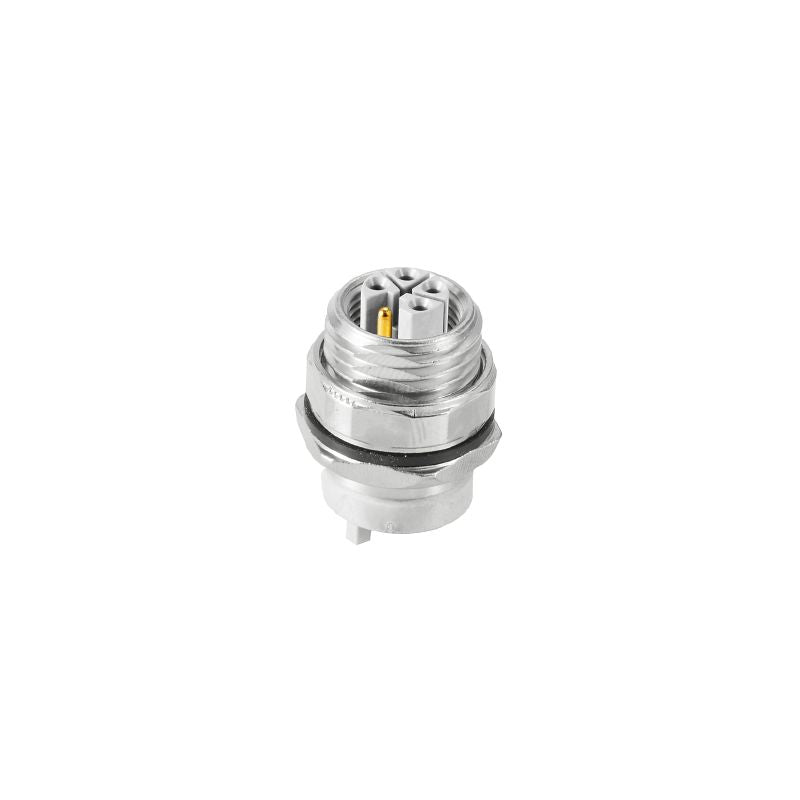

2530890000 - M12 Plug Connector, 5 Poles, IP67 Rated, 12mm Height

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile plug-in connector designed for a wide range of applications This product comes equipped with integrated M12 plugs and a dependable M 16 x 15 mounting thread Featuring a setup of 5 poles, it guarantees a secure connection for your needs Engineered with compliance to RoHS standards, the connector boasts a gold-over-nickel contact surface for superior conductivity and longevity.

With an installation height of just 12 mm, it operates efficiently at a nominal voltage of 63 V and a current rating of 16 A Furthermore, its IP67 protection rating offers excellent resistance to dust and moisture when installed correctly, ensuring robust performance in various environments.

Features and Benefits:

•Compliant with RoHS.

•L-coded for coding.

•Frontpanel mounting system.

•Gold over nickel contact surface for enhanced conductivity.

•IP67 protection degree when screwed in.

Specifications:
