Description:

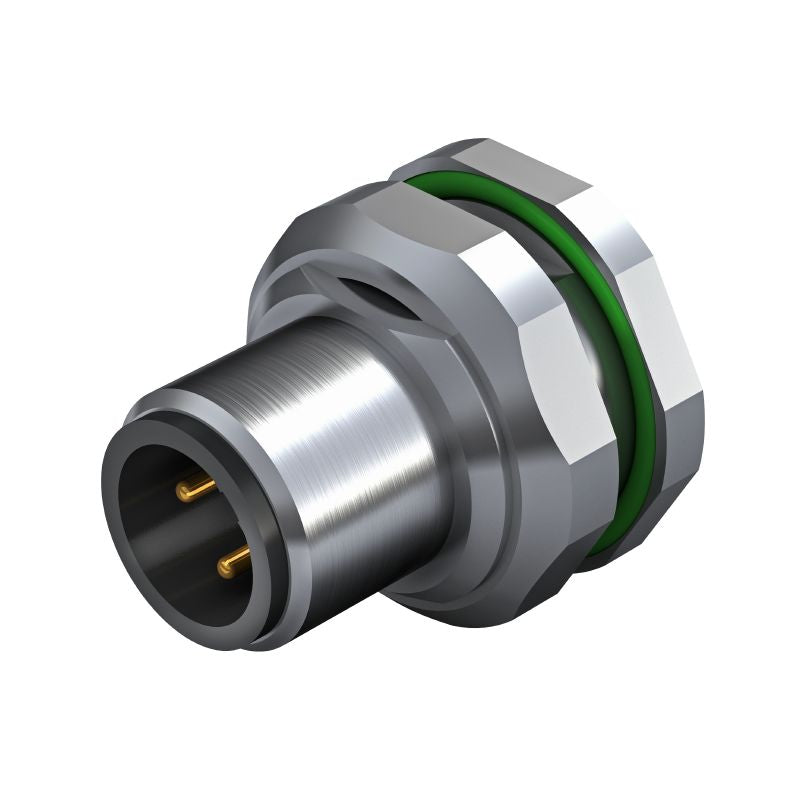

Introducing a robust built-in M12 connector, designed for reliability and ease of use It features a mounting thread of M16 x 15 and includes 5 poles for versatile connections This connector adheres to RoHS standards and is compliant under RoHS regulation 6c, making it suitable for various environmental conditions It operates efficiently at a nominal voltage of 60V and supports a rated current of 4A.

With a temperature tolerance ranging from -30 to 80 degrees Celsius, it is built to withstand extreme conditions Additionally, the IP67 protection rating ensures it is resistant to both dust and water intrusion, providing added durability for your applications.

Features and Benefits:

•Nickel-plated housing.

•Rear panel mounting design.

•No shield connection.

•Plugging cycles ≥ 100.

Specifications:

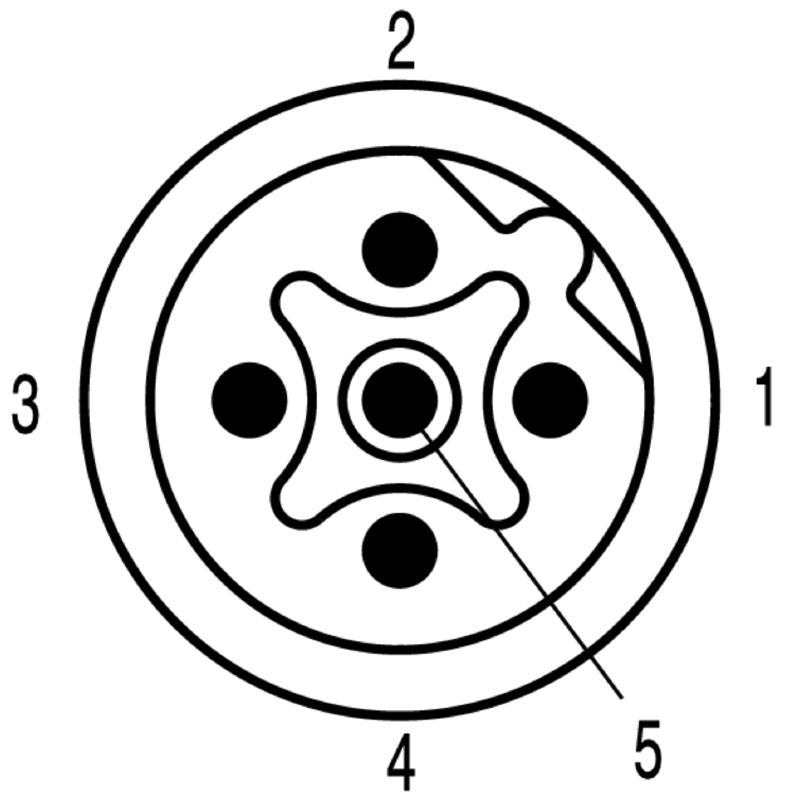

Number of poles	5
Nominal voltage	60 V
Rated voltage	60 V
Nominal current	4 A
Rated current	4 A
Temperature range	-30…80 °C
Protection degree	IP67
Insulation resistance	100 MΩ
Contact surface	Au (Gold)
Contact material	Cu-alloy

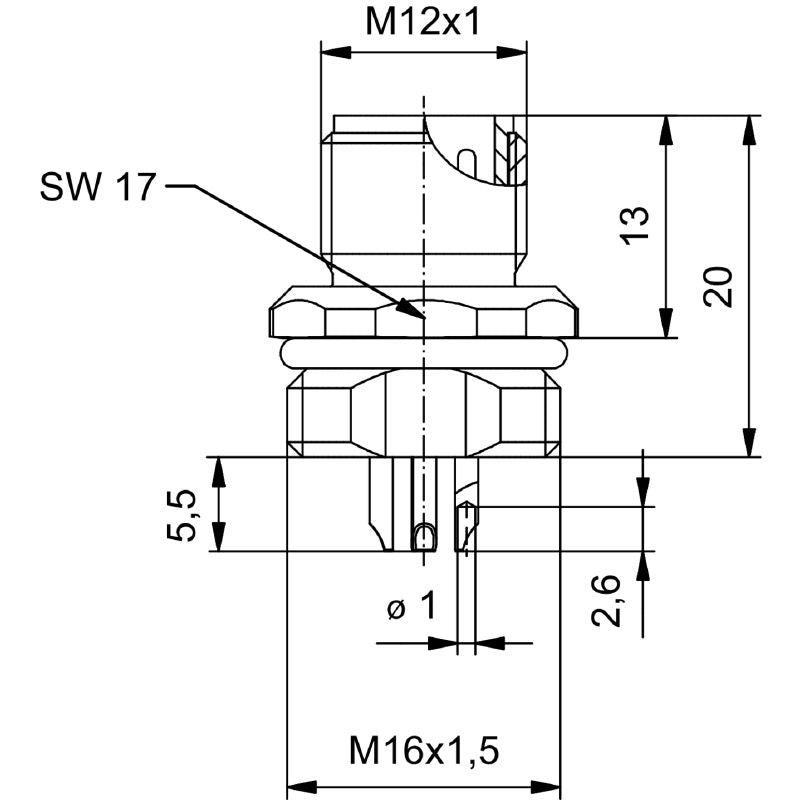

Connection thread	M12

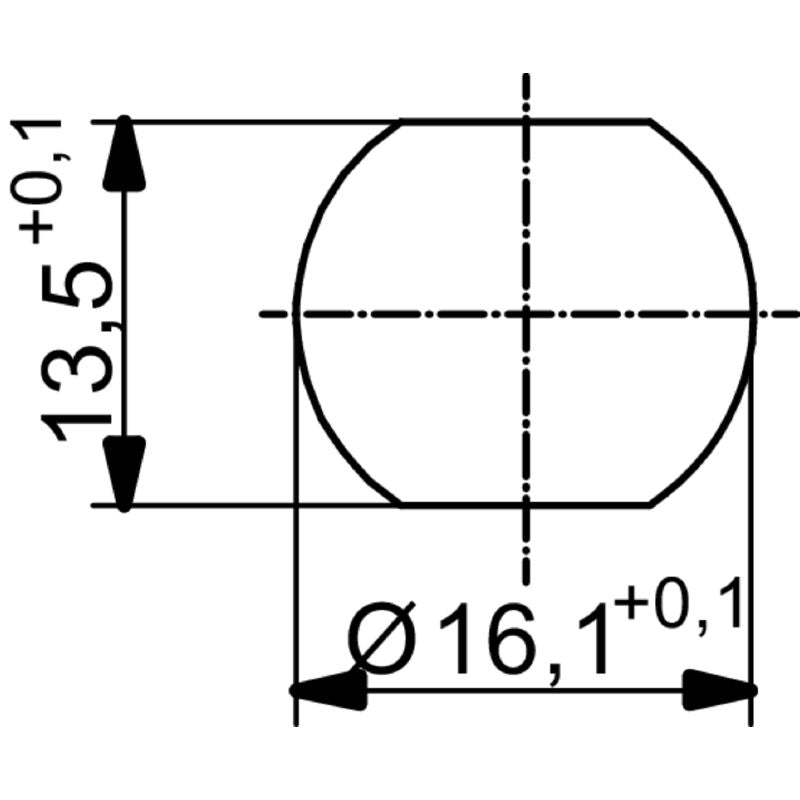

Mounting thread	M 16 x 1.5
Tightening torque	M12: 0.8 Nm
Mounting torque max	1.2 Nm
Pollution severity	3 (2 within the sealed area)
Lock nut material	Nickel-plated CuZn
Material of the flange-mounted housing	Nickel-plated CuZn
