2423170000 - M12 Connector 8-Pole with M14 Mounting Thread, RoHS Compliant (Pack of 25)

2423170000 - M12 Connector 8-Pole with M14 Mounting Thread, RoHS Compliant (Pack of 25)

SKU: 2423170000 Download PDF

Variant:
  • 2423170000 - M12 Connector 8-Pole with M14 Mounting Thread, RoHS Compliant (Pack of 25)
Now $242.03
BEFORE   $0.00 Now $242.03
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

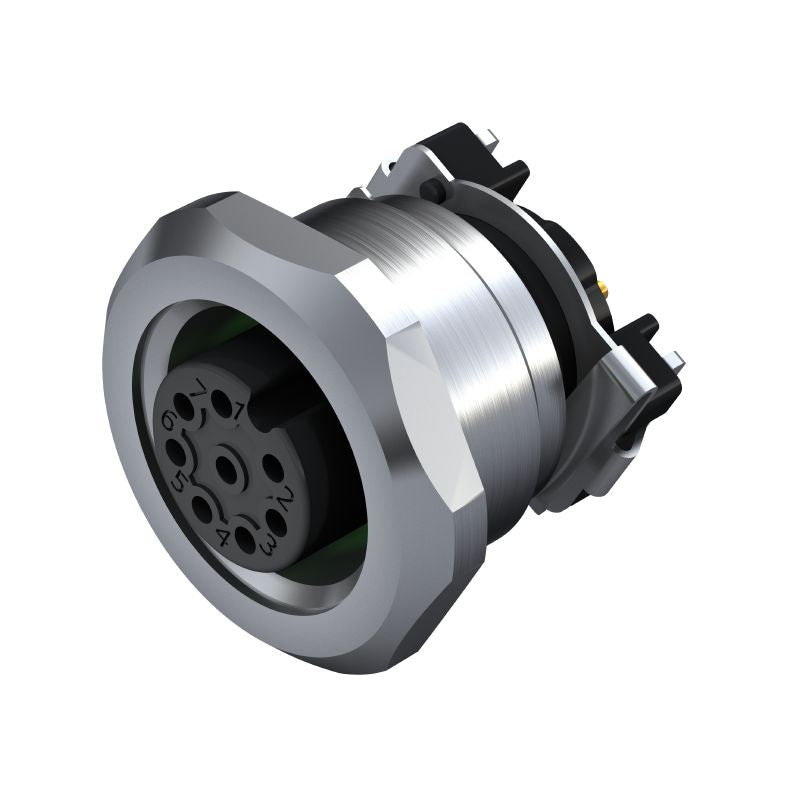

Experience seamless connectivity with this M12 connector, which comes with built-in plugs for quick and easy installation With an M14 mounting thread and 8 poles, it ensures efficient performance in various applications Weighing in at just 92 grams, this connector is both lightweight and durable Compliant with RoHS regulations, it incorporates certain exemptions, guaranteeing safety and environmental standards.

Constructed from nickel-plated CuZn, it also features full shielding to deliver reliable and robust functionality.

Features and Benefits:

    •A-coded for easy identification.

    •Shield connection included.

    •Rated to perform under a temperature range of -30 to 80 degrees Celsius.

    •Protection grade of IP67 ensures reliability in harsh environments.

    •Gold contact surface for enhanced connectivity.

    •SMD solder connection for seamless PCB integration.

Specifications:

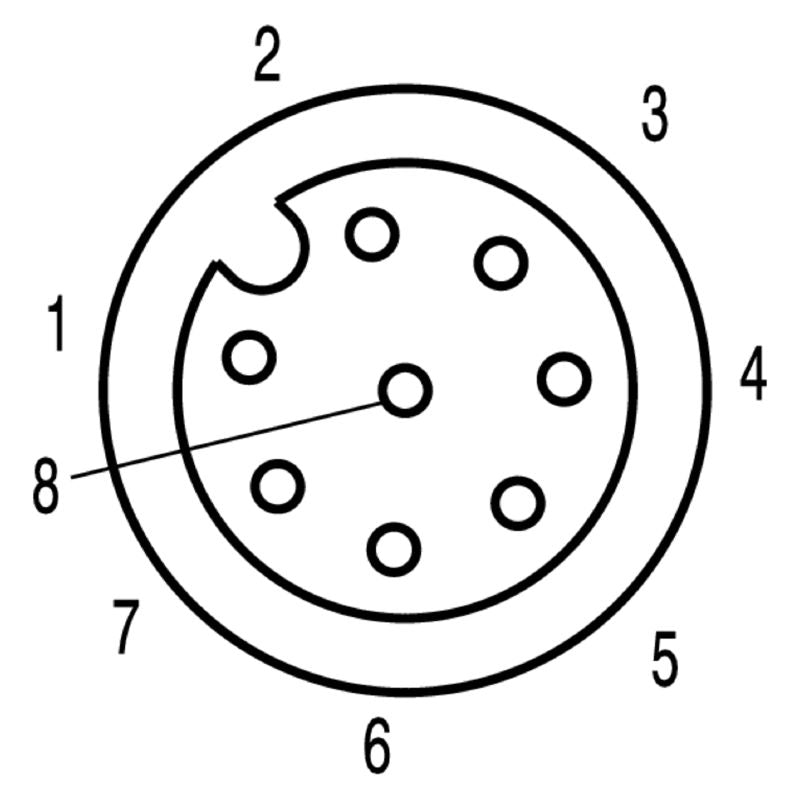

 Number of poles 8
 Nominal voltage 30 V
 Rated voltage 250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
 Nominal current 2 A
 Rated current 4 A (4- and 5-pole) / 2 A (8-pole)
 Insulation resistance 100 MΩ
 Plugging cycles ≥ 100
 Tightening torque M12: 0.8 Nm
 Mounting torque max 1.2 Nm
 Pollution severity 3 (2 within the sealed area)
 Temperature range -30…80 °C
 Connection thread M12
 Housing main material CuZn
 Contact material Cu-alloy
 Contact surface Au (Gold)

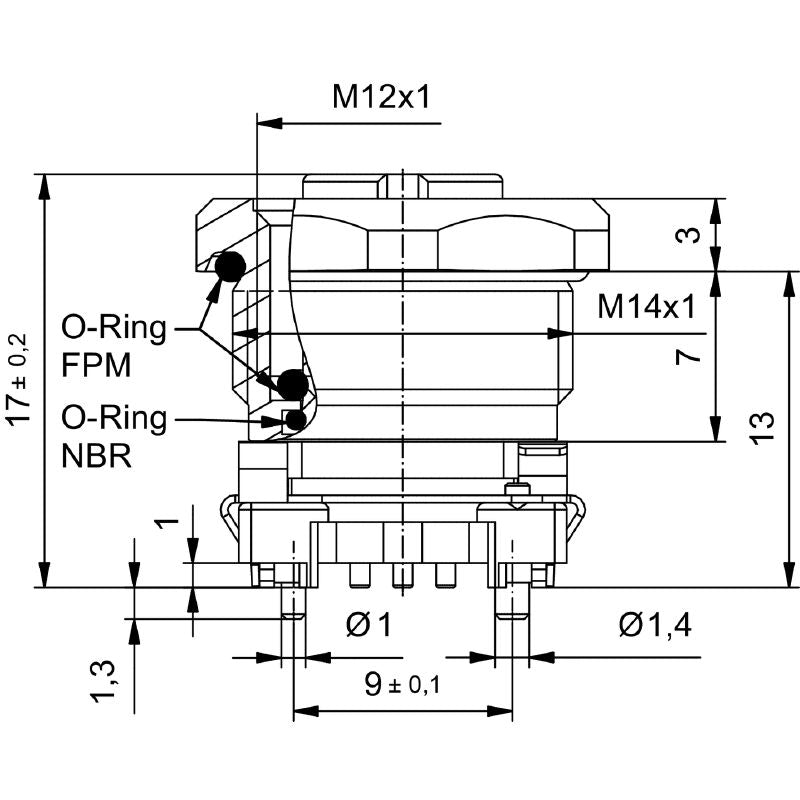

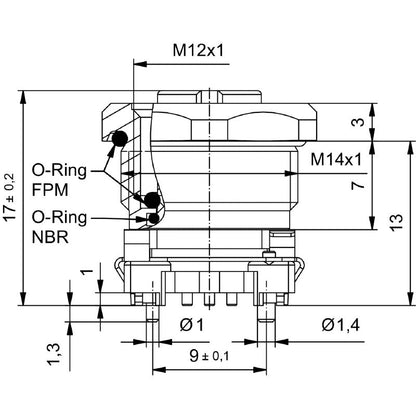

 Installation height 13 mm
 Mounting thread M14
 Housing surface nickel-plated

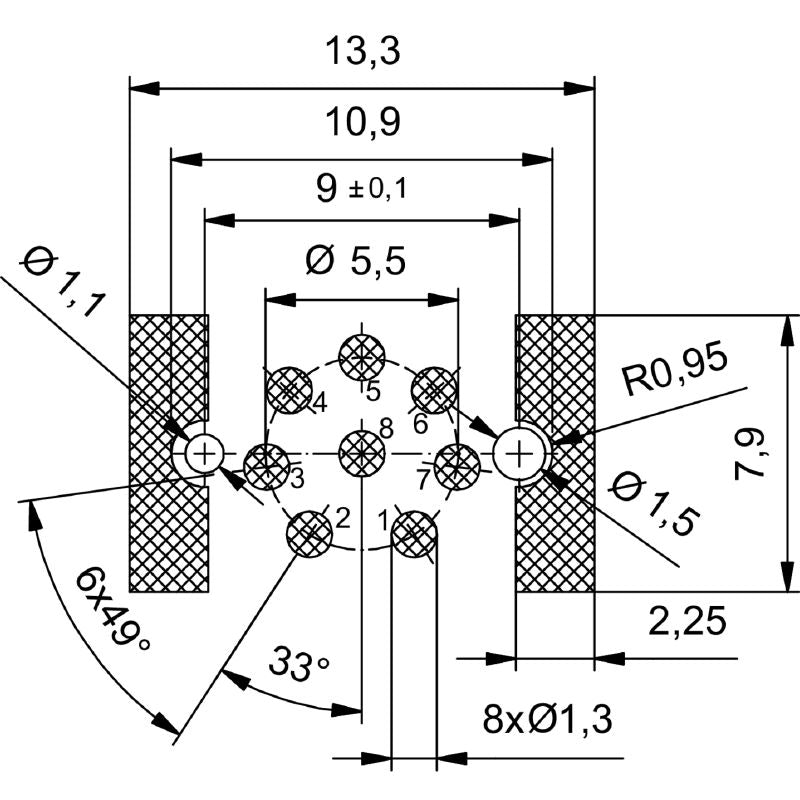

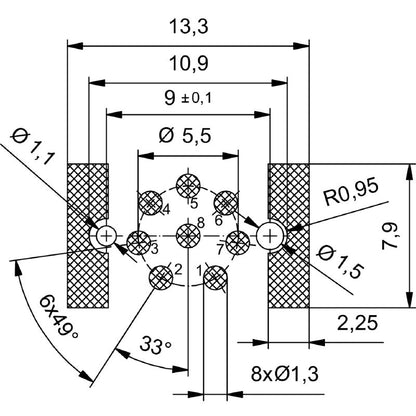

 Mounting onto the PCB SMD solder connection
 Protection degree IP67
