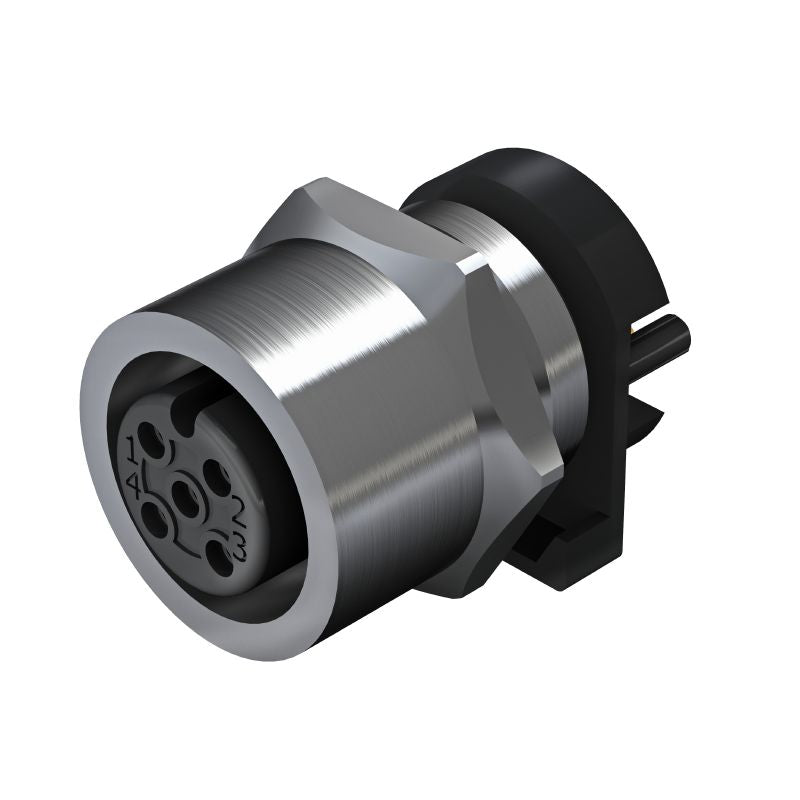

2422550000 - M12 5-Pole Socket Connector, IP67, 4A, Nickel-Plated (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

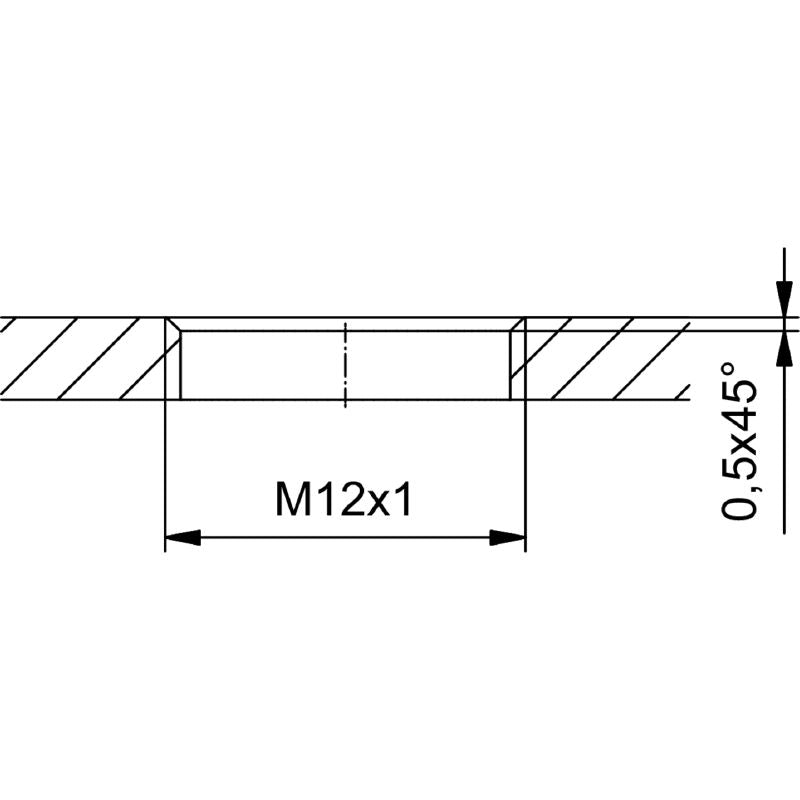

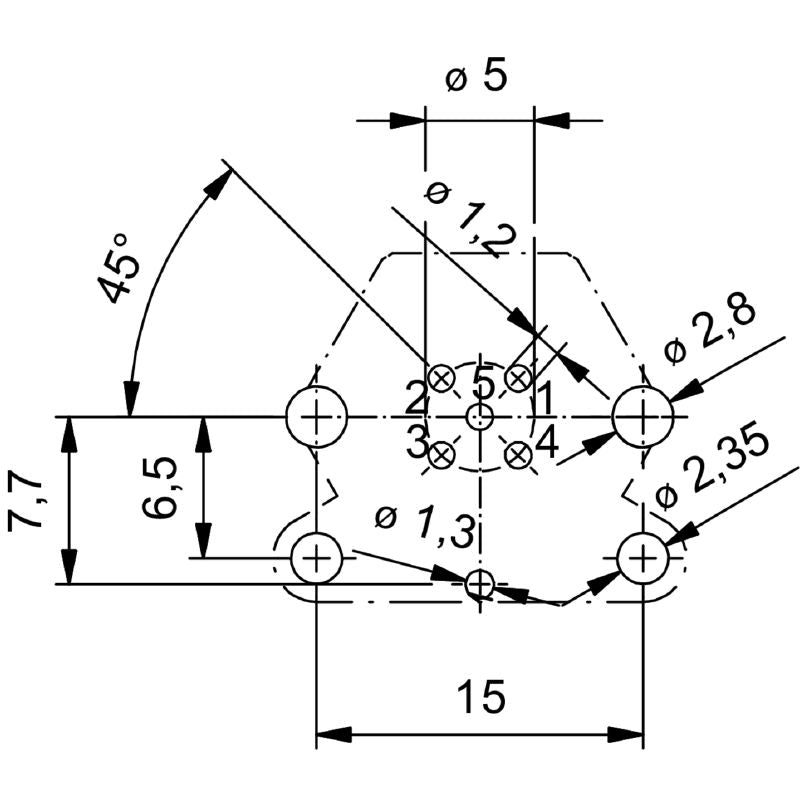

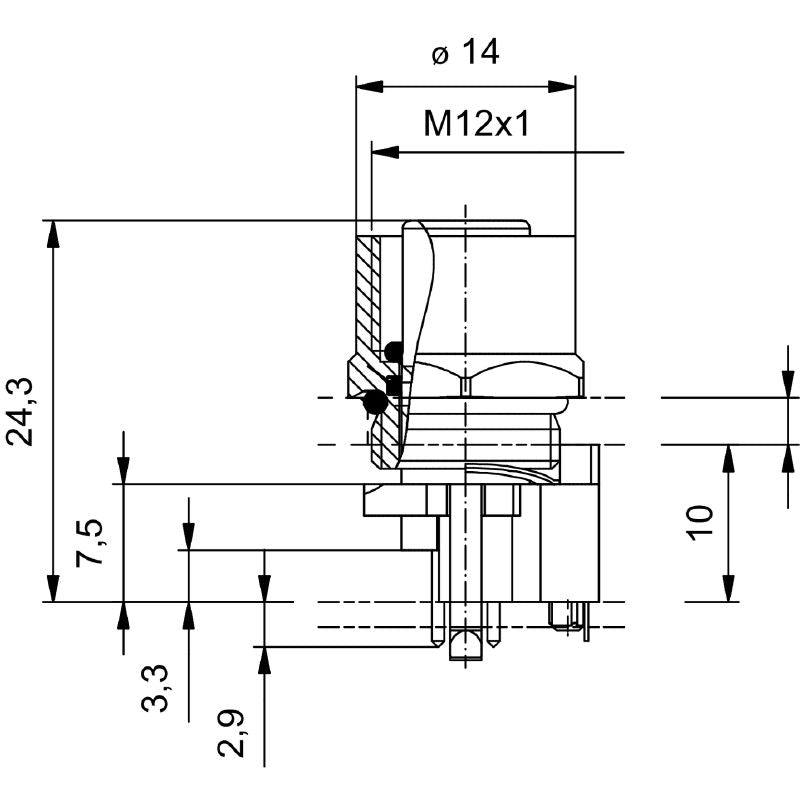

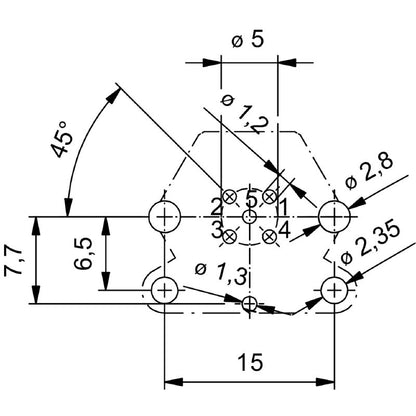

The M12 socket connector is engineered to meet the demands of various applications, featuring an integrated plug with a 5-pole configuration and a standard M12 mounting thread Adhering to RoHS compliance, it boasts a durable nickel-plated housing This connector supports a nominal voltage of 60V and a rated voltage of 250V (for 4 poles) or 60V (for 5 poles), capable of handling a nominal current of 4A.

Built to perform in extreme conditions, it operates efficiently within a temperature range of -30 to 80 °C and offers an impressive IP67 rating for superior dust and water protection.

Features and Benefits:

•Nickel-plated housing surface.

•A-coded for specific connector configurations.

•Front mounting design for ease of installation.

•Designed for a minimum of 100 plugging cycles.

•IP67 protection degree ensures resistance to dust and moisture.

Specifications:
