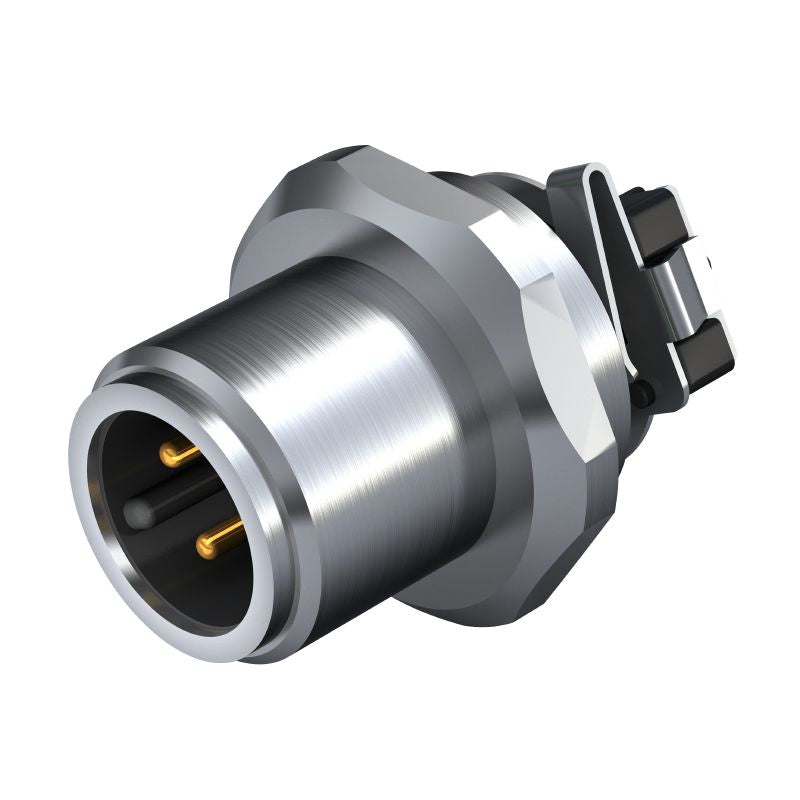

2423290000 - M12 4-Pole Plug Connector with M14 Thread and IP67 Rating (Pack of 25)

2423290000 - M12 4-Pole Plug Connector with M14 Thread and IP67 Rating (Pack of 25)

SKU: 2423290000   Download PDF

Select a Variant:
  • 2423290000 - M12 4-Pole Plug Connector with M14 Thread and IP67 Rating (Pack of 25)
Qty:
Now $178.71   Web pricing policy
BEFORE   $0.00 Now $178.71 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover the reliability of this built-in M12 connector, featuring a mounting thread of M14 and a 4-pole configuration This product meets RoHS guidelines, including all relevant exemptions With an M12 connection thread, it operates at a nominal voltage of 250 V and a nominal current of 4 A, making it ideal for demanding applications The durable nickel-plated housing withstands temperatures ranging from -30 to 80 °C, while the IP67 rating guarantees exceptional protection across various environments.

Features and Benefits:

    •A-coded connector.

    •Nickel-plated housing.

    •IP67 protection degree.

    •Plugging cycles of at least 100.

    •Insulation resistance of 100 MΩ.

Specifications:

 Standard Compliance RoHS compliant with exemption

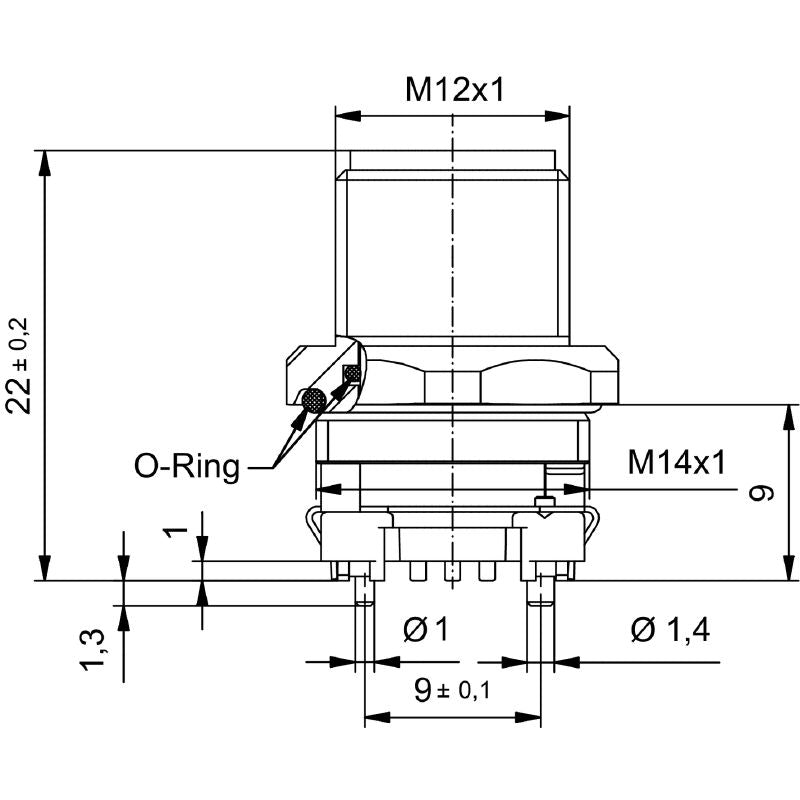

 Installation Height 9 mm
 Rated Current 4 A (4- and 5-pole) / 2 A (8-pole)
 Contact Surface Au (Gold)
 Contact Material Cu-alloy
 Tightening Torque 0.8 Nm
 Mounting Torque Max 1.2 Nm
 Nominal Voltage 250 V
 Temperature Range -30…80 °C
 Number of Poles 4
 Housing Main Material CuZn, nickel-plated
 Shield Connection Yes
