Description:

Introducing the M8B-4S-H12TL connector, expertly crafted for seamless panel mounting with built-in plugs This versatile connector is engineered to accommodate a variety of applications while providing a secure connection Its durable design is well-suited for challenging environments, boasting an IP67 protection rating that shields it from dust and water intrusion With an operational temperature range of -30 to 80 °C, this connector is reliable in diverse conditions.

It supports a nominal voltage of 30 V and can manage a current rating of 4 A, guaranteeing dependable performance for your needs.

Features and Benefits:

•Designed for rear panel mounting.

•Water and dust resistant with an IP67 rating.

•Constructed to withstand plugging cycles of at least 100 times.

•Includes gold-plated contact surfaces for reliable conductivity.

•Nickel-plated housing for enhanced corrosion resistance.

Specifications:

Assembly Thread	M10 / M12

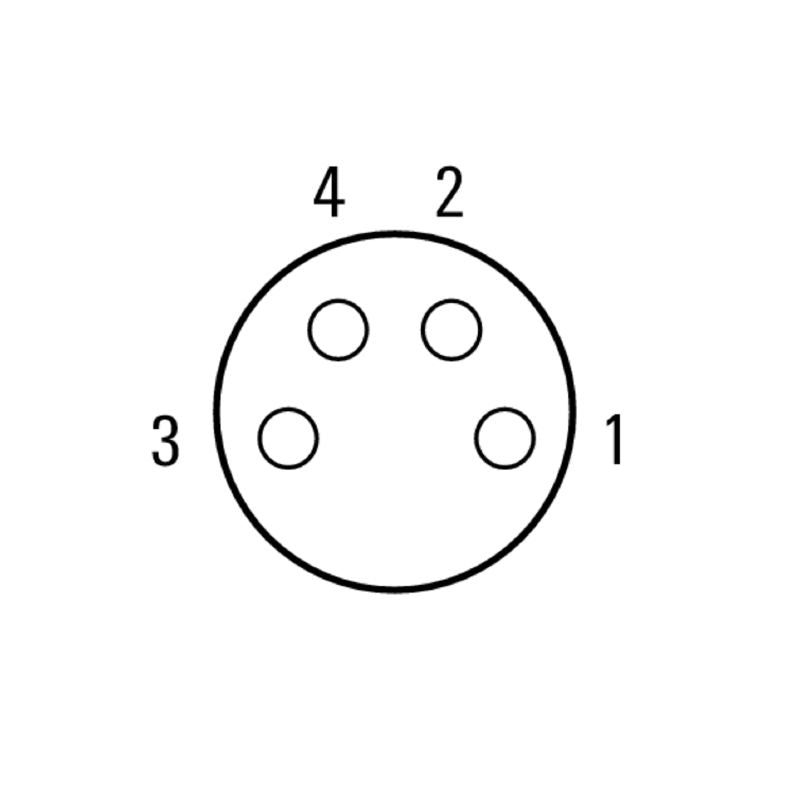

Number of Poles	4
Nominal Voltage	30 V
Rated Voltage	60 V (3-pole) / 30 V (4-pole)
Nominal Current	4 A
Rated Current	4 A
Temperature Range	-30…80 °C
Protection Degree	IP67
Contact Surface	Au (Gold)
Housing Material	CuZn, nickel-plated
Connection Thread	M8
Insulation Resistance	100 MΩ
Plugging Cycles	≥ 100
Seal Material	FPM
Grouting Material	PUR
