2422460000 - M12 4-Pole PCB Connector, IP67, 250V Front Mount (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

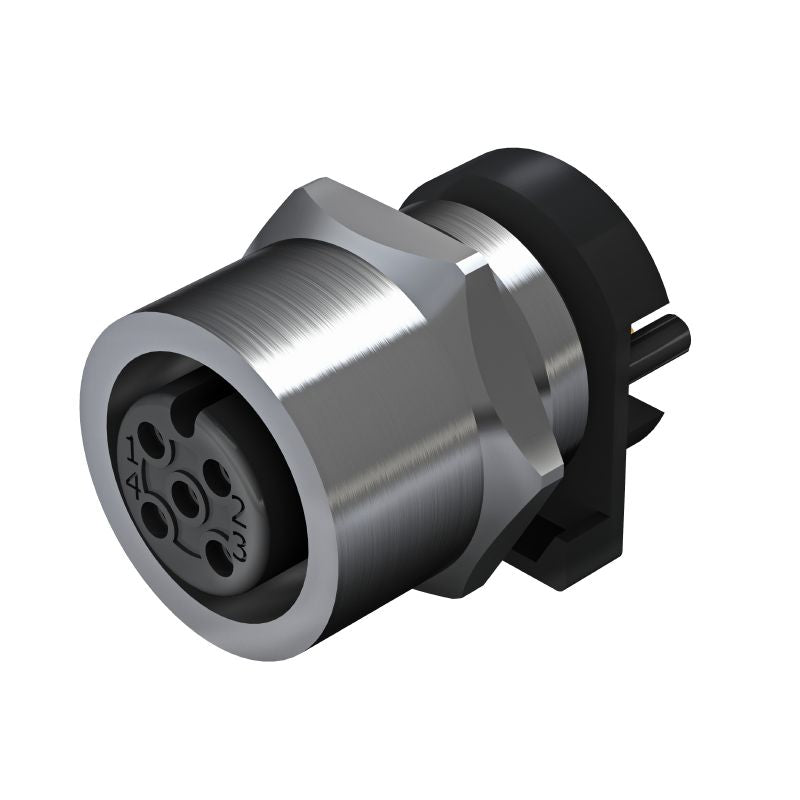

Introducing the SAIE-M12B-4-F10TL, a versatile PCB plug-in connector equipped with built-in plugs Designed with an M12 mounting thread, this connector features four poles and allows flexibility in strand or cable length It complies with RoHS regulations, including necessary environmental assessments The nickel-plated surface not only enhances durability but also supports front mounting applications.

With a nominal voltage rating of 250V and a current capacity of 4A, it operates efficiently within a temperature range of -30 to 80 degrees Celsius Moreover, it offers robust protection rated at IP67 and is engineered for a minimum of 100 plugging cycles, ensuring reliable performance in various settings.

Features and Benefits:

•Nickel-plated housing for durability.

•A-coded for easy connection.

•Front mounting design for easy installation.

•Rated for a temperature range of -30 to 80 °C.

•High protection degree of IP67.

Specifications:
