Description:

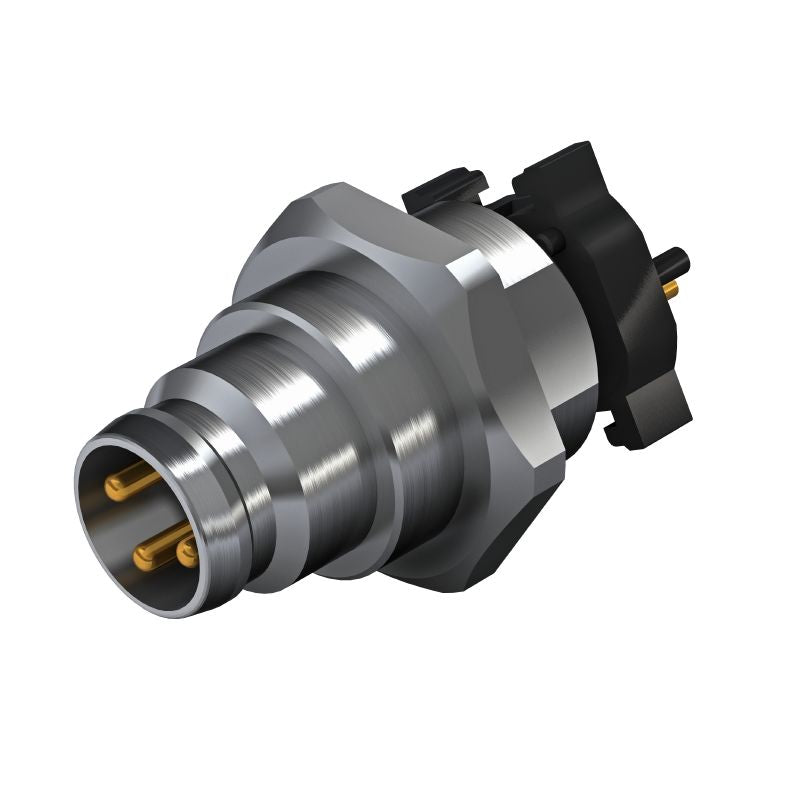

Introducing the SAIE-M8S-4-H6SMT, a reliable PCB plug-in connector equipped with integrated M8 plugs, ideal for rear panel installations This versatile connector features a threaded mounting hole measuring M10 and includes four poles for efficient connectivity Engineered to handle a nominal voltage of 30V and support a nominal current of 4A, it’s designed with durability in mind Plus, it proudly holds a RoHS certification for environmental compliance and boasts an IP67 protection rating, making it perfect for a variety of industrial applications.

Features and Benefits:

•Nickel-plated housing surface.

•Operating temperature range from -30 to 80 °C.

•High insulation resistance of 100 MΩ.

•Shield connection feature.

•Compatible with various plugging cycles of ≥ 100.

Specifications:

Mounting thread	M10
Number of poles	4
Nominal voltage	30 V
Rated voltage	30 V
Nominal current	4 A
Rated current	4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
Temperature range	-30…80 °C
Protection degree	IP67
Contact surface	Au (Gold)
Housing main material	CuZn, nickel-plated
Connection thread	M8
Tightening torque	0.5 Nm
Mounting torque max	0.8 Nm
Insulation resistance	100 MΩ
Pollution severity	3 (2 within the sealed area)
Seal material	NBR
Lock nut material	Nickel-plated CuZn
Material of the flange-mounted housing	Nickel-plated CuZn
Grouting material	PUR
